Incoming inspection notes

task
8 min readUpdated

An incoming inspection note records the inspection work associated with received products. Use it to create a note, review a saved note, record inspection decisions, and release inspected products to stock.

Incoming inspection notes

An incoming inspection note is the inspection record you use after receiving work and before the subsequent warehouse stock work.

If you need to…Go to
Create or review an inspection noteFind an inspection note
Understand the fields and conditional areasUnderstand the inspection screen
Enter decisions and save the noteRecord inspection details
Understand successful and blocked savesRecognize completion and validation messages
Continue with the broader receiving, inspection, and stock relationshipWarehouse fulfillment flow
Review receiving work before inspectionGoods receipt notes

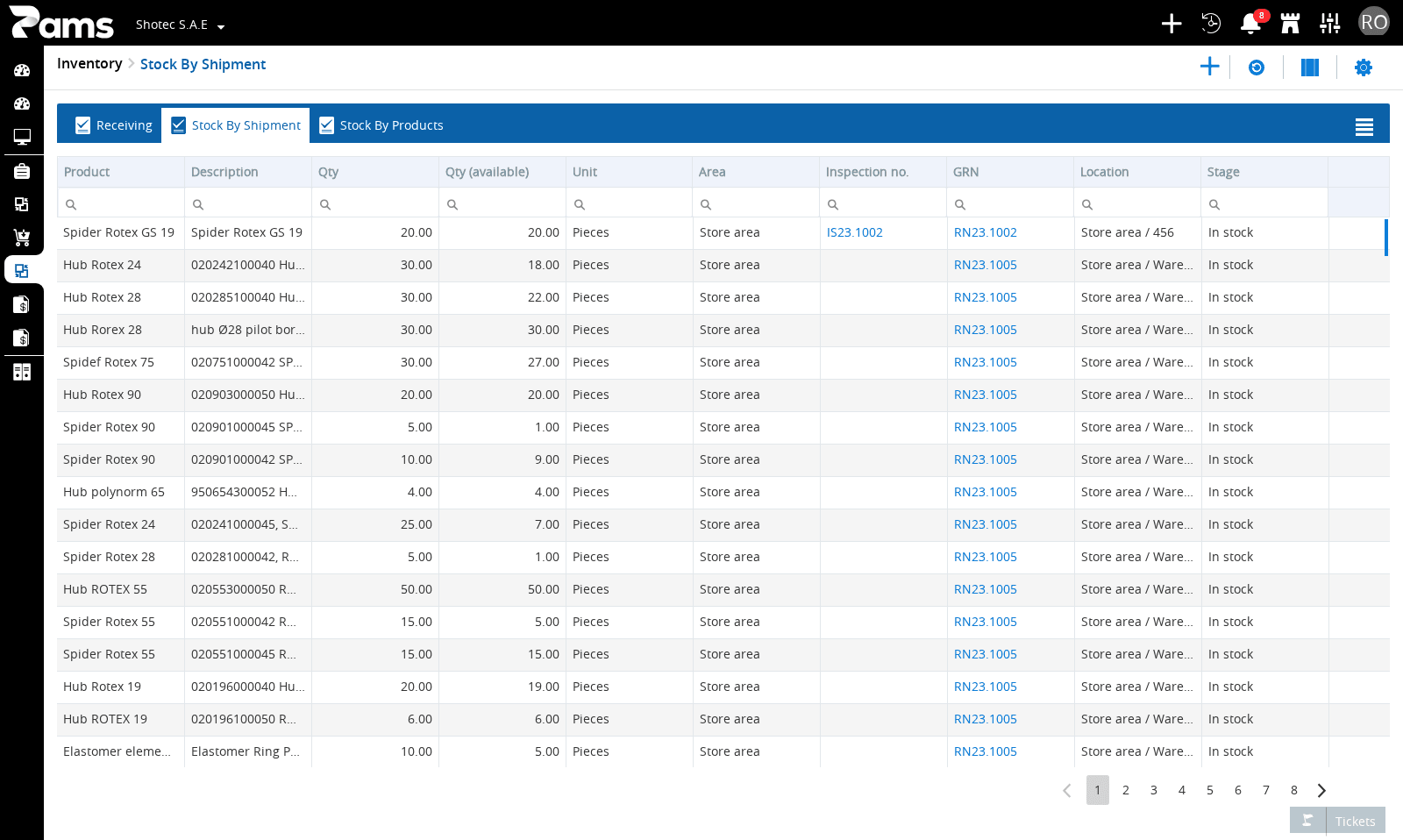

Review stock by shipmentStock by shipment
Review inspection-base setupBase of inspection
Review inspection-checklist setupInspection checklist
Review inspection-document setupInspection documents

Before you start

An inspection note needs an order context before its product, checklist, document, defect, and comment areas can appear. Have the order ready, and keep the receiving details available for the fields filled from the selected order.

Have or knowWhy it matters
An order to inspectOrder Number is required on the new form.
The selected order's GRN detailsGRN No. is required when an order is selected.
The selected order's sub-supplier detailsSub-supplier is required when an order is selected.
Whether you are leaving a new noteThe new-note route uses a leave-screen guard, so leaving with unsaved changes can interrupt navigation.
The order source you needThe picker supports purchase, assembly, transfer, and delivery-note data sources.

The product can replace the inspection page with an upgrade surface when the Warehouse inspections subscription is unavailable. Access and subscription settings determine which surface you receive.

Note: A new note can use the leave-screen guard when you move away before saving.

Find an inspection note

Choose the path that matches the work you need to do.

Prerequisites

  • You know whether you are starting a new note or reviewing a saved note.
PathStepAction
Start a note1From the Warehouse new-record menu, select Incoming Inspection Note.
Start a note2Confirm that the page title is Incoming Inspection Note.
Review a saved note1Open the inspection list.
Review a saved note2Confirm that the list title is Incoming Inspection Notes.
Review a saved note3Select the row link for the note.

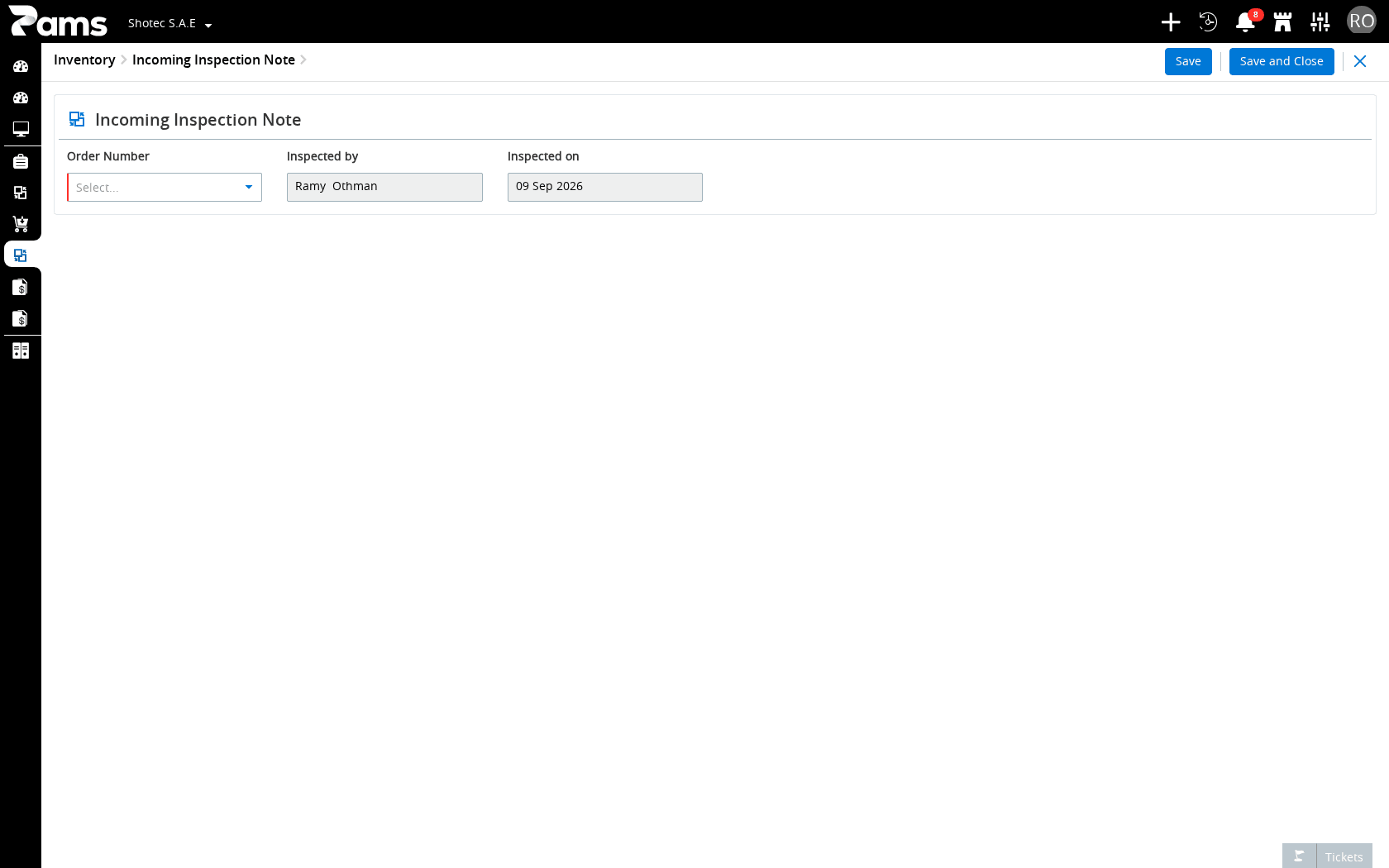

The new-note title and header area

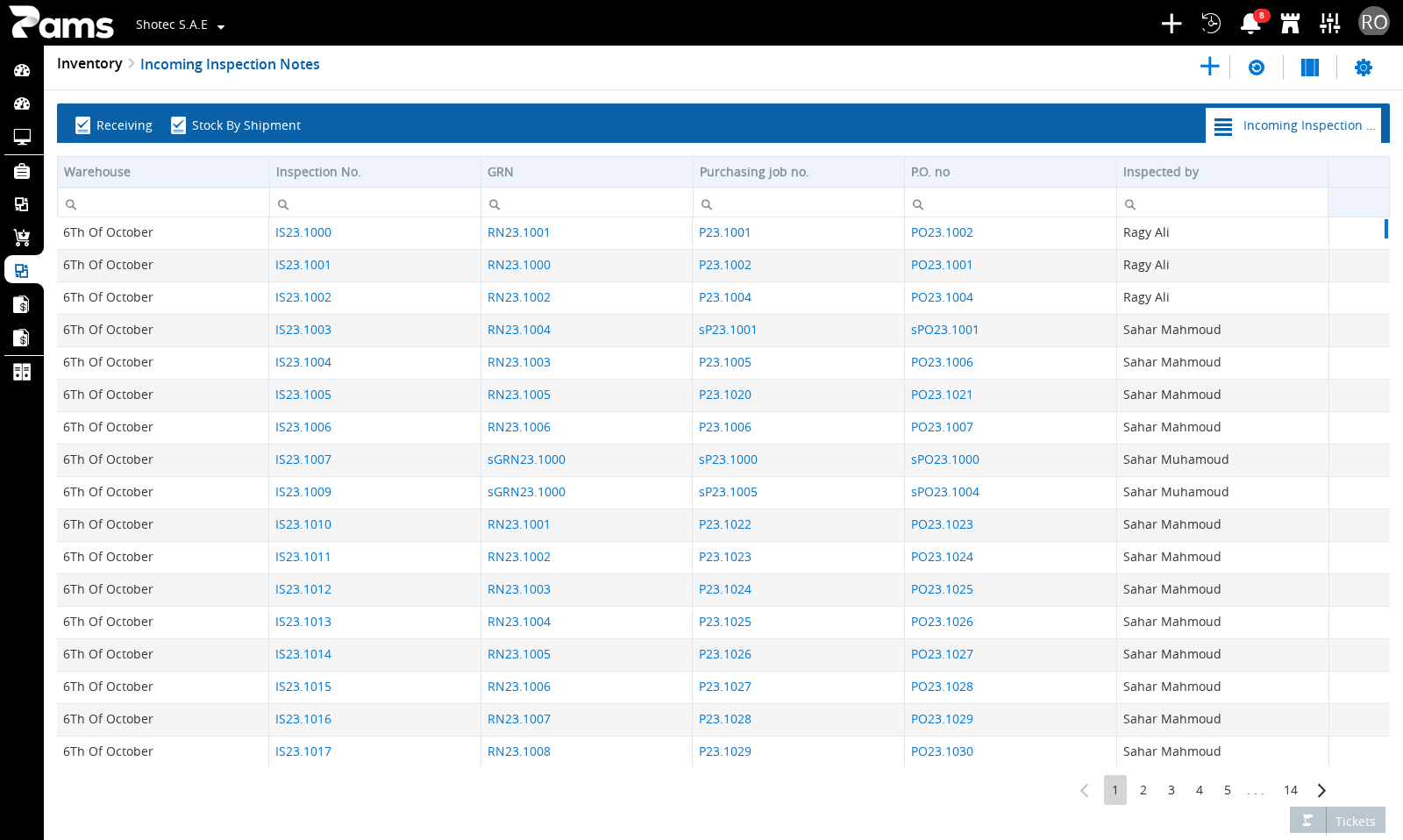

The inspection list title, columns, and toolbar

The list has these columns:

ColumnUse it to…
WarehouseIdentify the warehouse shown for the row.
Inspection No.Identify the inspection note.
GRNIdentify the goods receipt reference.
Purchasing job no.Identify the purchasing job reference.
P.O. noIdentify the purchase-order reference.
Inspected byIdentify the inspecting person shown for the row.

The list toolbar provides Refresh, Table Layout, and Settings. Selecting a row opens its edit screen.

Result: The new-note form or the selected saved note is open. Continue with Understand the inspection screen.

Understand the inspection screen

The inspection screen starts with header information, then shows order-dependent product, checklist, document, defect, and comment areas. Saved notes also expose history, warehouse, and comment surfaces.

On a new note, the header includes Order Number, Inspected by, and Inspected on. Order Number is selectable and required. Inspected by is a disabled selection, and Inspected on is a disabled date whose maximum is today. GRN No. and Sub-supplier are disabled text fields that become required when an order is selected. Sub-supplier shipment no. is also disabled text. Order Number has a required marker. Inspected by, Inspected on, Save, and Save and Close are available on the new-note form.

The required Order Number picker

The product area appears after an order is selected. Its grid contains Products, Unit, Ordered Qty., Received Qty., Accepted qty, Rejected qty, Rejection Reason, Comments, and Attachment. The product add action is not available on this surface. When a product has rejected quantity and the note is editable, Re-inspect is available for that product. After release, Re-inspect is row-specific for a product with rejected quantity.

The checklist grid contains Object to inspet, Base of inspection, Acceptance (YES/NO), and Comments. The acceptance choice is Yes or No, and it is editable only when the screen is editable. The documents grid contains Document and Yes / No choices; the choices are editable only when the screen is editable.

The defects grid contains Defect, Defect Category, and Attachament. The main form also contains the optional Comment text area. A defect entry requires Defect and provides Defect Category selection.

On a saved note, the available tabs include history, warehouse areas, and comments. Last Modifications opens the audit-log tab. Finish and release to stock and Inspection template may be available when the note is saved, unchanged, and not released. Save controls appear when the note is editable and its data has changed; they are disabled without data changes. Editable grid actions are hidden on a read-only note. When inspection defects exist, Defect is available for the defect work.

The inspection surface with its main areas

Continue with Record inspection details.

Record inspection details

Record inspection details against a selected order. The order supplies the dependent areas; the quantities and decisions you enter determine which conditional fields become required.

Prerequisites

  • You have an order to inspect.
  • You have the received quantity and inspection decisions for each product.
  • You know any rejection reason, defect, document decision, and comment to record.

Steps

  1. In Order Number, select the order to inspect.

    The header fields after opening a new note
  2. Review the Products, Checklist, Documents, Defects, and Comment areas.

  3. In the product grid, review Ordered Qty. and Received Qty..

  4. Open the product details and enter Accepted qty.

  5. Keep Accepted qty at or below Received Qty..

  6. Enter Rejected qty for the quantity that is not accepted.

  7. If Rejected qty is greater than zero, enter Rejection Reason.

  8. Choose Yes or No in Acceptance (YES/NO) for each checklist item.

  9. Choose Yes or No in the documents grid for each document decision.

  10. In the defects area, enter Defect and select Defect Category when recording a defect.

  11. Enter an optional note in Comment.

  12. If accepted quantity is greater than zero during re-inspection, enter Comment after re-inspection.

  13. Choose the save action that matches what you want to do next.

    If you want to…Select
    Save the note and remain on its formSave
    Save the note and leave its formSave and Close

The product grid also provides Comments and Attachment columns. Use the available product popup fields for Ordered Qty., Received Qty., Accepted qty, Rejected qty, Rejection Reason, and Comment. The re-inspection popup provides Accepted qty and Comment after re-inspection under their stated conditions.

Result: The note is saved with the inspection details. A new note saved without leaving opens its edit screen. Continue with Recognize completion and validation messages.

Recognize completion and validation messages

The message identifies whether the save completed or which inspection condition needs correction.

ConditionMessageWhat to do
The save completesYour request was completed successfullyContinue reviewing the saved note.
Mandatory data is missing during saveCheck mandatory field(s)Complete the required fields and save again.
A required field is emptyThis Field Is RequiredEnter the missing value in the named field.
Accepted quantity exceeds received quantityAccepted quantity cannot be greater than received quantity.Reduce Accepted qty to the received quantity or less.
Package-product validation rejects an empty packagePackage products cannot be emptyComplete the package-product information before saving.
A product has no acceptance or rejection decisionYou have products with no decision regarding accepted or rejected quantityEnter the accepted or rejected quantity decision for each product.

When a product has rejected quantity and the note remains editable, Re-inspect is available. After a saved, unchanged note that is not released, Finish and release to stock and Inspection template may be available. Continue with When validation or saving goes wrong.

When validation or saving goes wrong

Use the condition that matches what you see before changing the note.

What you seeWhat it meansWhat to do
An error occurred while processing your requestA save or load request returned an error.Review the note and request access or service assistance before repeating the action.
Check mandatory field(s)The save request contains invalid or incomplete mandatory data.Complete the required header, quantity, and conditional rejection fields.
Accepted quantity cannot be greater than received quantity.Accepted qty is above Received Qty.Reduce Accepted qty and save again.
Products, Checklist, Documents, Defects, and Comment are absentNo order is selected.Select an order in Order Number.
Editable product or defect actions are absentThe note is read-only.Review the note without changing it, or open an editable note.
An upgrade surface replaces the inspection pageWarehouse inspections subscription access is unavailable.Follow the upgrade surface available to your organization.
The list headers differ from the expected headersThe selected list layout determines the columns shown.Work from the headers visible in your list and use Table Layout if you need to adjust the layout.

No message or dialog appears during the passing read-only review path. Treat the absence of an editable action as the condition to act on, rather than waiting for a confirmation.

Continue with Release inspected products and continue.

Out of scope

MessageWhere it belongs
Just '_'‘-''.' And '&' Characters AcceptedShared file-library validation in the file popup

Release inspected products and continue

Inspection completed and Finish and release to stock are alternative closing actions for an existing editable note when its products have not been released. Before release, every inspected product needs an accepted or rejected quantity.

Prerequisites

  • The inspection note is saved.
  • The note has no unsaved changes.
  • The note is not released.

Steps

  1. Open the saved inspection note.
  2. Confirm that the note has no unsaved changes.
  3. Select Finish and release to stock.
  4. Review the Release to stock confirmation and the message You are about to release these products to stock, are you sure?.
  5. Confirm the release.

Result: The products are released to stock. Continue with Warehouse fulfillment flow and Stock by shipment.
