Use this page to review and save branch-level CRM choices and synchronization rules. A customer relationship management (CRM) integration controls whether a branch uses a CRM and which sales orders, purchase orders, invoices, commission invoices, and products synchronize between PAMS and the CRM.

CRM integration settings

CRM integration settings determine the selected CRM, the direction of synchronization, and when each supported record is issued. The settings area contains one expandable panel for each branch.

The page opens with branch panels collapsed. Open a branch before choosing an integration. A selected CRM reveals the synchronization matrix; No integration leaves the matrix hidden.

If you need to…Go to
Return to the wider configuration areaConfiguration home
Review sales-order work affected by synchronizationOrders
Continue with purchase-order workPurchase job record
Continue with invoice workInvoice lifecycle
Continue with product workProducts

Before you start

Before changing a branch, have the following ready:

What you needWhy it matters
A subscription that includes the CRM integration settingsWithout the subscription, the page shows the subscription-upgrade surface instead of the settings surface.
Edit access to the settingsEdit access determines whether Save and Save and Close are available.
The branch you intend to changeThe settings belong to the branch whose panel you open. Opening another branch closes the previously open panel.
Your CRM choice and synchronization policyThe choice determines whether the synchronization matrix appears, and the create selections determine which update and timing options appear.

No field on this page is marked required. The page does not provide text-entry fields for external CRM credentials or a connection test.

Find and open a branch

A branch panel is the expandable area that contains one branch's CRM choice and synchronization settings.

Prerequisites

  • Open the Integration with CRMs settings page.
  • Know which branch you want to review.

Steps

  1. Locate the branch by its displayed branch heading.

  2. Select the branch heading or its expand control.

    Branch headings with the settings panels collapsed

The selected panel opens. Opening another branch closes the currently open panel, so the visible settings belong to the open branch.

Result: The selected branch's CRM settings are open.

Review and configure synchronization workflows

Synchronization settings describe when PAMS sends records to the CRM and when the CRM sends records to PAMS. The page uses Pams >> CRM and Pams << CRM for those directions.

Note: The synchronization matrix appears only for a branch with an integration selected.

Prerequisites

  • Open the branch panel you want to configure.

Steps

  1. Review the CRM choices: No integration, Odoo, Sugar, Sales force, M.s. dynamics, and SAP.

  2. Select the CRM that the branch uses.

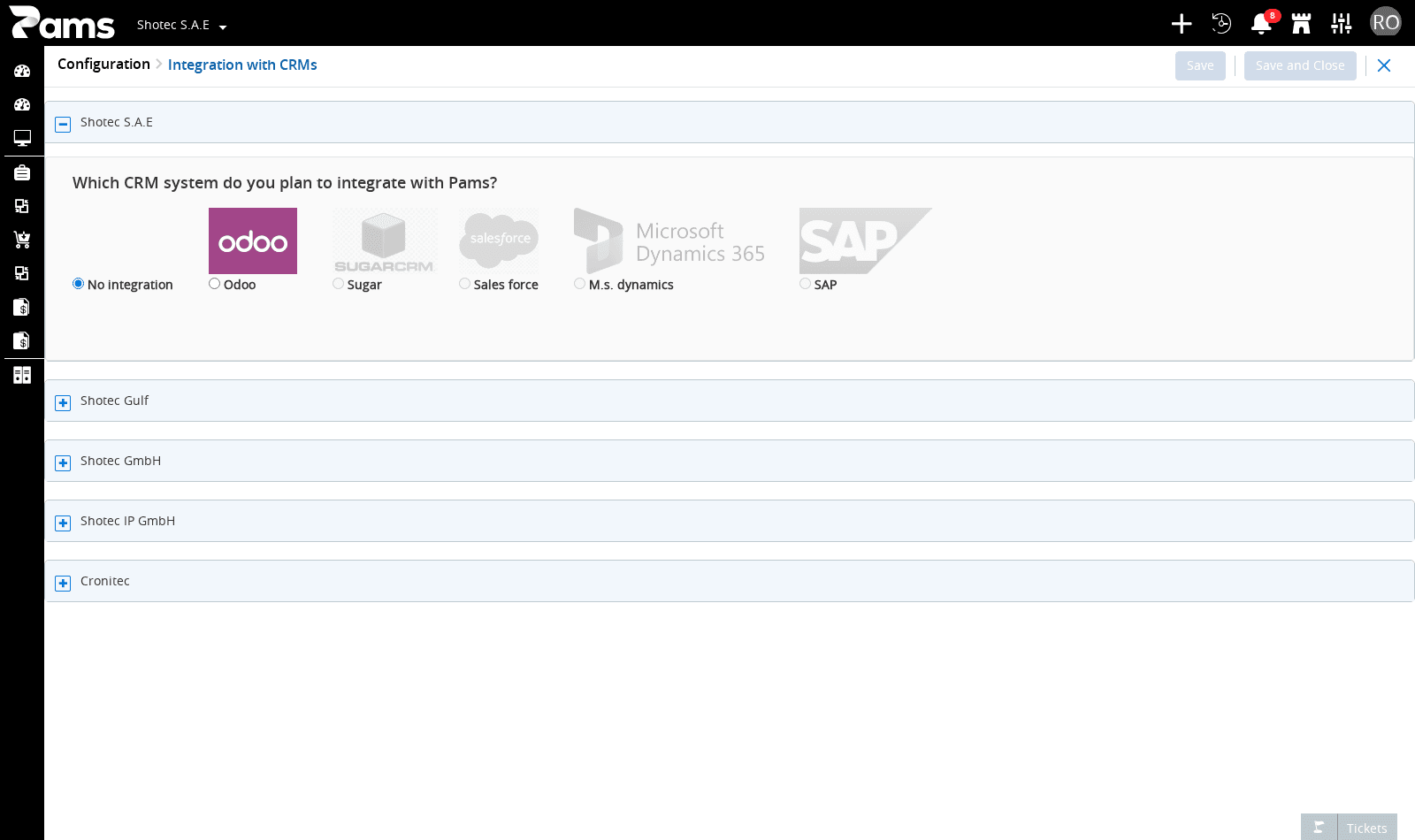

    CRM choices in the open branch settings
  3. Review the applicable workflow choices in the matrix.

    WorkflowCreate and update choicesIssue timing choices
    Sales ordersSynchronize when create new sales order; Synchronize when update sales orderAutomatically when sales order is draft; Automatically when sales order is valid; Automatically when sales order is delivered
    Purchase ordersSynchronize when create new purchase order; Synchronize when update purchase orderAutomatically when PO is draft; Automatically when PO is valid; Automatically when PO is received
    Sales invoicesSynchronize when create new sales invoiceAutomatically when invoice is draft; Automatically when invoice is due; Automatically when invoice is paid
    Commission invoicesThe commission-invoice create and update choicesAutomatically when invoice is draft; Automatically when invoice is due; Automatically when invoice is paid
    ProductsSynchronize when create new product; Synchronize when update productNot applicable
    BookingThe visible workflow choicesThe visible issue timing choices

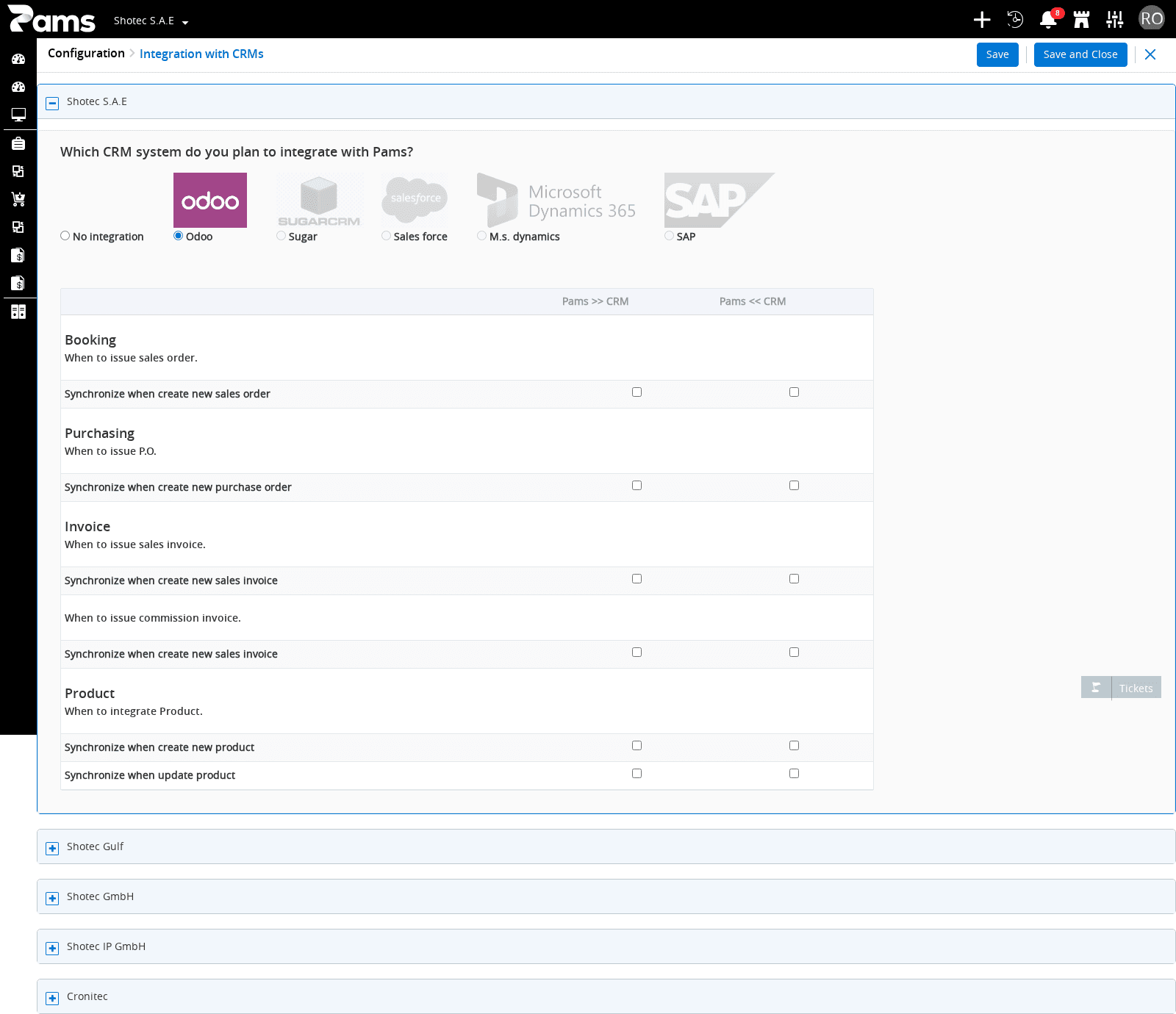

    Synchronization matrix after a CRM is selected

Update and issue-timing choices appear for a workflow after at least one create direction for that workflow is selected. The matrix uses Pams >> CRM and Pams << CRM as its two directions.

Result: The branch shows its CRM choice and the applicable direction, create, update, and timing choices.

Handle configuration branches

Each branch has one of three visible settings states:

Branch stateWhat you seeWhat to do
No integrationNo integration is selected and the synchronization matrix is absent.Select a CRM when this branch must synchronize with one.
Enabled integrationA CRM such as Odoo, Sugar, Sales force, M.s. dynamics, or SAP is selected and the matrix is visible.Review the two synchronization directions and the applicable workflows.
Create selection madeA workflow's update choices and issue-timing choices are revealed after a create direction is selected.Review the newly visible choices before saving.
Branch showing No integration without the synchronization matrix

The timing choice Don't integrate is not available in the mounted workflow choices. Leave a workflow's create directions unselected when that workflow should not expose its update and timing choices.

Save or leave settings

Saving commits the choices for the open branch. Leaving with unsaved changes opens a decision prompt instead of silently discarding them.

Prerequisites

  • Open the branch whose settings you reviewed or changed.

Steps

  1. Select the action that matches what you want to do.

    If you want to…Select
    Save and remain on the settings pageSave
    Save and close the settings surfaceSave and Close
    Leave without savingThe X in the upper-right corner of the open settings panel.

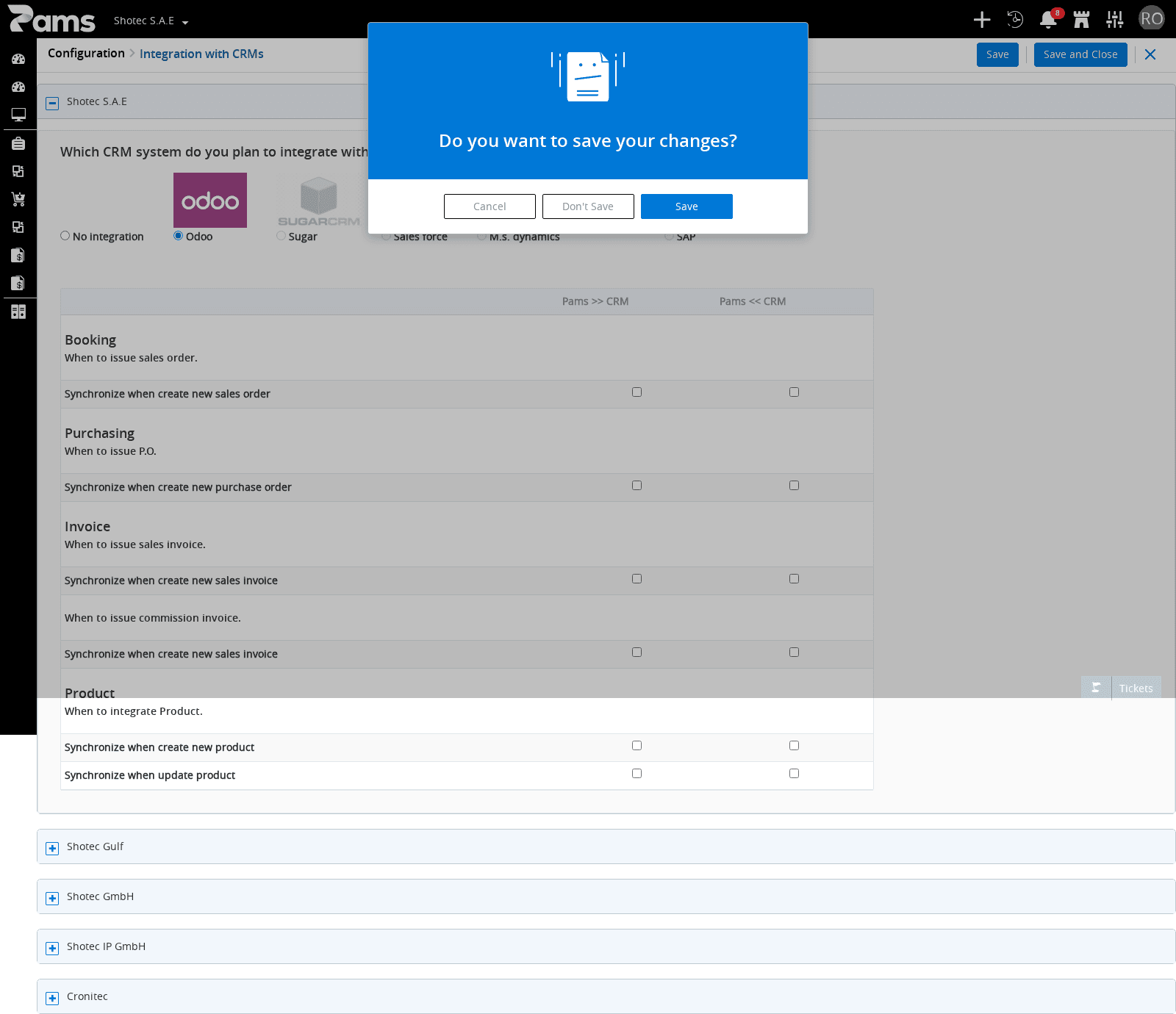

  2. If the prompt asks Do you want to save your changes?, select the required outcome.

    If you chooseOutcome
    SaveThe changes are saved before you leave.
    Don't SaveThe unsaved changes are discarded and you leave without saving.

After a successful save, the page displays Your company work procedure settings has been saved successfully.

Result: The branch settings are saved, saved and closed, discarded after your confirmation, or left at their previously saved values.

When settings do not save

Use the table below to match what you see with the supported action for this page.

What you seeWhat it meansWhat to do
An error occurred while processing your request while the page is loadingThe settings request did not complete.Check that the branch page is available, then open the branch again.
Server Error after selecting Save or Save and CloseThe save request returned an error.Select Save or Save and Close again.
The synchronization matrix is absentThe branch has No integration selected, or the selected CRM has not been applied to the open branch.Review the integration choice. The matrix appears only when a CRM other than No integration is selected.
Update or timing choices are absent for a workflowNo create direction is selected for that workflow.Select a create direction for the workflow, then review the choices that appear.
Save or Save and Close is unavailableThe page is not in an editable state for your access.Ask an administrator with edit access to make the change.

The settings page does not provide a CRM connection test. The message An error occurred while connecting to your CRM system. belongs to a CRM connection or synchronization action page, not to this settings page.

What to do next

After saving, continue in the work area that matches the synchronization choices you configured. Use Orders for sales-order work, Purchase job record for purchase-order work, Invoice lifecycle for invoices, and Products for product work. Return to Configuration home when you need another administrative setting.
