Edit report setting

reference
7 min readUpdated

Use this page to review and change an existing report setting, including its report tabs, widgets, imported dashboard tabs, time frame, and editable previous-month value.

Before you start

A report setting is a saved report library configuration. This editor changes the tabs and widgets that the setting contains, while Last Modifications records the actions performed on the saved setting.

Use Save or Save and Close only after checking the changes you intend to commit.

Find a report setting

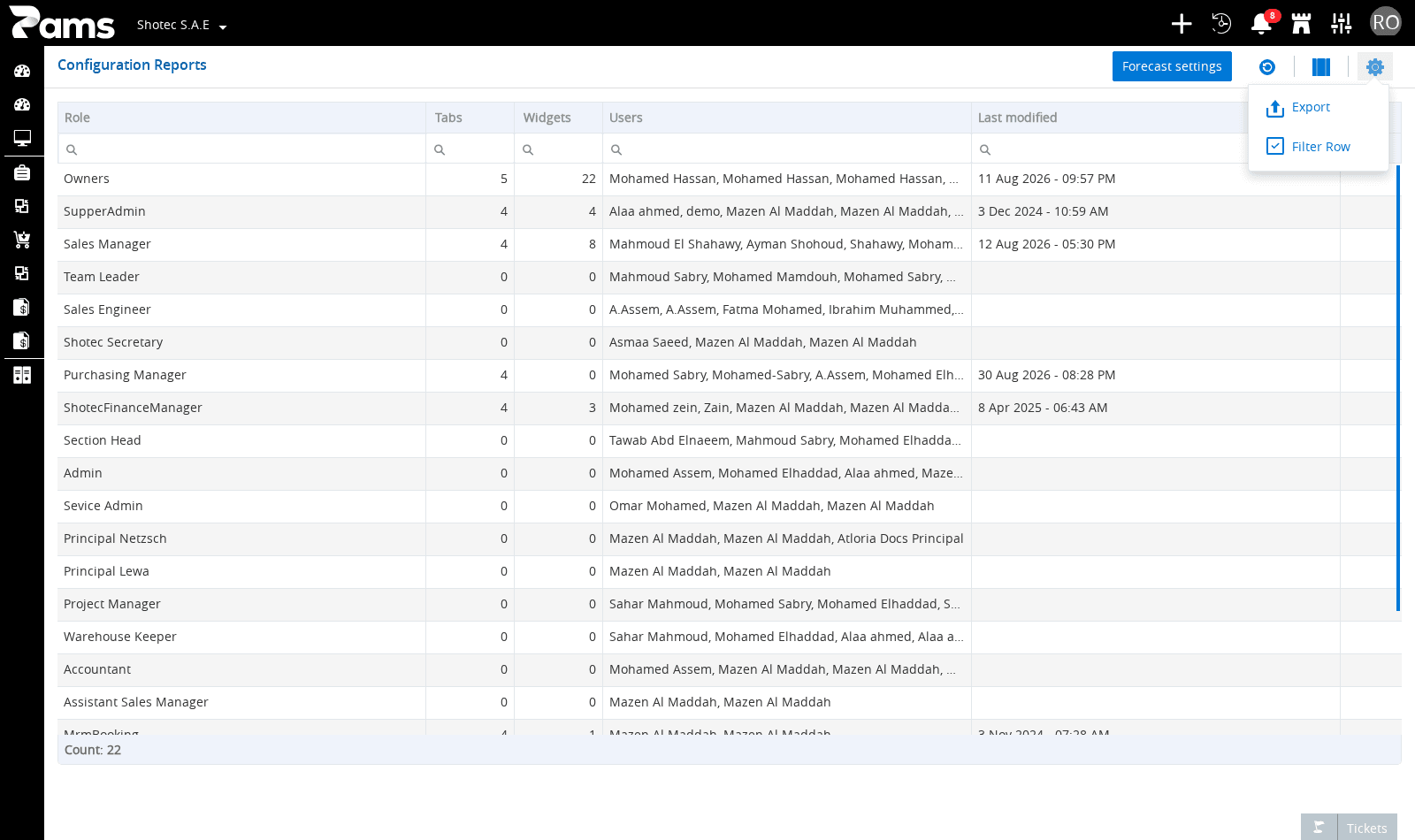

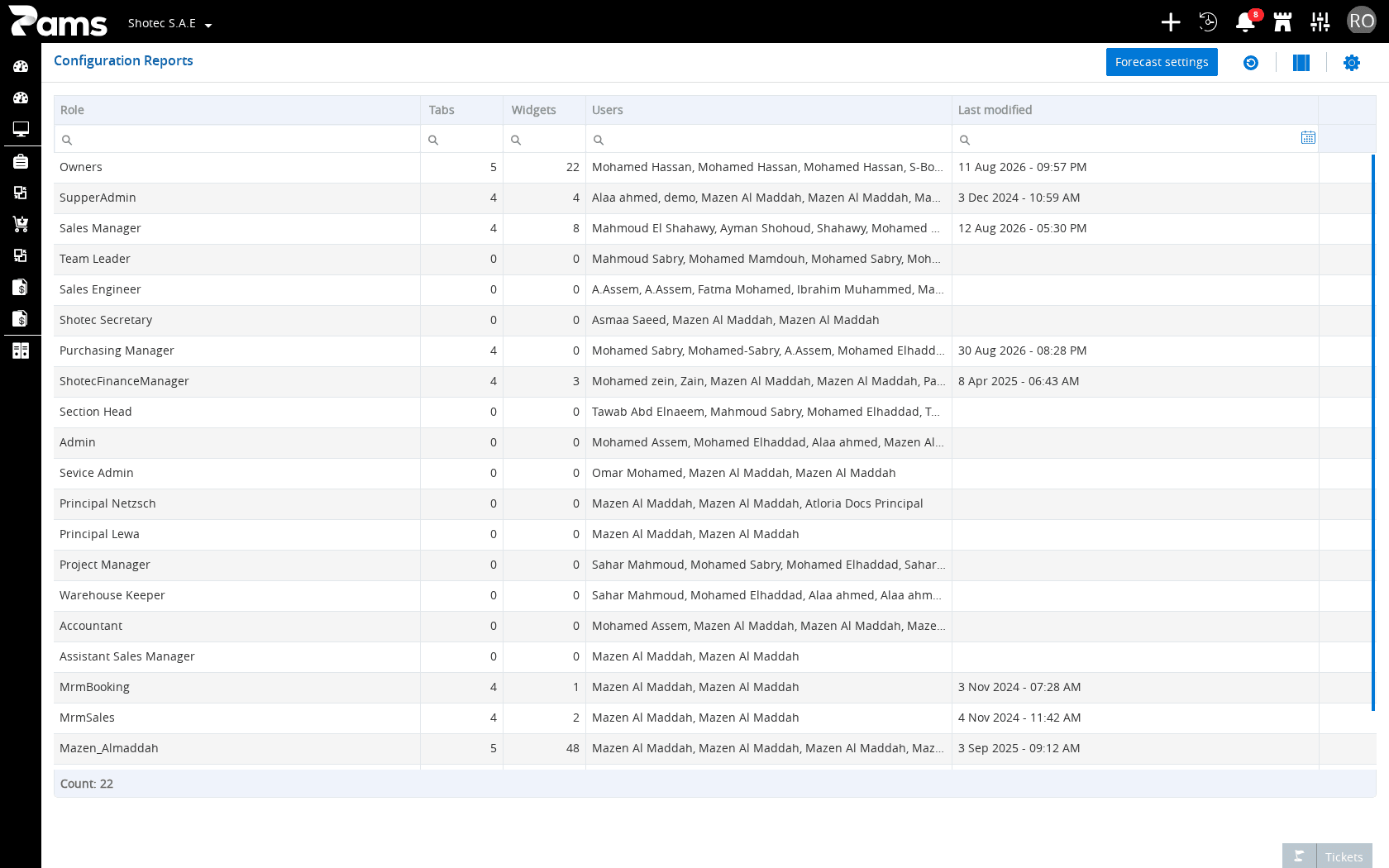

Use the report-settings list to find a saved report setting, then open its edit form to change it.

Prerequisites

  • You have access to the configuration reports area.
  • You have an existing saved report-setting record to open.

Steps

  1. Open the report-settings list from the configuration area.
  2. Select the existing report-setting record you need to change.
  3. Open the saved report setting's edit page.
  4. Confirm that the Edit report setting screen is open.
The existing report-setting editor with its record-specific controls

Result: The existing report-setting editor is open.

With the editor open, review its report-library areas and controls before changing a setting.

Understand the report-setting screen

The report-setting screen is a report library: report tabs hold the active report content, and widgets provide the report entries within the active tab.

The main surface shows Editable prev. months and Time Frame as readouts. The screen also shows Widget, Tab, Save, and Save and Close.

Area or controlWhat to look for or use it for
Editable prev. monthsReview the current previous-month value.
Time FrameReview the selected year or last 12 months.
WidgetOpen widget selection for the active tab.
TabOpen the add-tab menu.
SaveSave the dashboard configuration.
Save and CloseSave and request that the page be left.
The report tabs are Booking, Sales (invoicing), Financial, Warehouse,
and Cash. The report library also shows Extend all, Cash Flow, Account Payable,
Net Profit, and Last Modifications. Last Modifications is the saved-setting history
area.

Fields and conditions

These fields and choices control which report period, dashboard tabs, and active-tab content the saved setting uses.

Field or choiceWhat it shows or doesWhen it appears or changes
Editable prev. monthsShows the current value and copies that value into the numeric popup before editing.The value is shown on the editor; the numeric field is in the PrevMonths popup.
Time FrameShows the selected year or last 12 months.The readout is on the editor; time-frame choices are in the time-frame popup.
Another role dashboardsAvailable choices are the dashboard names returned for this screen. Selecting a dashboard supplies its data and identifier for loading Select tab(s); the current dashboard and dashboards without dashboard data are excluded.The import-dashboard popup.
Select tab(s)Provides the source tabs to select after a dashboard is selected.After a dashboard is selected in Another role dashboards.
All (Replace existing tabs)Replaces the current tabs with the selected dashboard's tabs when selected.In the import-dashboard popup when the choice is available.
number of editable Prev. monthsAccepts values from 1 through 11.In the PrevMonths popup.
New TabNames a new or renamed report tab and is required in the report-library add/edit popup.In the add/edit tab popup.
Search for widgetSearches the widget choices for the active tab and can be cleared.In the active-tab widget menu.

The time-frame readout can represent a selected year or last 12 months; the selected value is changed through its popup rather than by editing the readout itself. The previous-month readout similarly opens the numeric popup with the current value already copied into it.

The Time Frame readout and its time-frame choices

When you select a dashboard in Another role dashboards, Select tab(s) is populated with the tabs returned for that dashboard. Selecting All (Replace existing tabs) makes the source dashboard's tabs replace the current tabs instead of adding only selected tabs.

The report-library add/edit popup requires New Tab. The active-tab widget menu provides Search for widget as a clearable search field.

Change and save report settings

Use this procedure to choose the edit path first, then commit the intended report-library change with Save or Save and Close.

Prerequisites

  • An existing report-setting editor is open.
  • You know whether the change affects a widget, a tab, imported dashboard tabs, the time frame, or previous months.
  • If you change a tab name, you have a value to enter in New Tab.

Steps

  1. In the active report tab, select Widget to open widget selection.

  2. Select a report entry from widget selection, using Search for widget to narrow the choices when needed.

    The Select widget dialog for the active report tab
  3. Select Tab to open the add-tab menu.

  4. Choose one tab action.

    If you need to…Select
    Start a blank tabBlank Tab
    Import tabs from another dashboardImport From
    Rename the active tabRename tab
    Start the tab-deletion flowDelete tab
  5. If you selected Import From, select a dashboard in Another role dashboards.

  6. If the source dashboard is selected, choose entries in Select tab(s).

  7. If you want to replace the current tabs, select All (Replace existing tabs).

The Import dashboard popup with Another role dashboards and Select tab(s)
  1. If you selected Blank Tab, enter the tab name in New Tab.

  2. If you selected Blank Tab, confirm the popup.

  3. If you selected Rename tab, enter the new name in the tab-name editor.

  4. Select Save to save the dashboard configuration, or select Save and Close to save and request page leave.

Result: The selected widget, tab, import choice, rename choice, or delete flow is on screen, and the selected save action is available for the intended commit.

Handle screen variations

The editor changes its visible surfaces according to whether it is editing a saved record, which tabs exist, which tab is active, and which popup or dashboard choice is open.

ConditionSurface or control affected
Edit mode is activeHeader values and Widget, Tab, Save, Save and Close, and close controls are available.
The report setting has at least one report tabWidget is enabled.
The selected dashboard has itemsThe imported-tab list appears.
The import-dashboard popup is openAnother role dashboards, Select tab(s), and the import fields appear.
The previous-month popup is opennumber of editable Prev. months appears.
A tab is activeThat tab's report content appears.
The saved setting has a history areaLast Modifications appears.

The add-tab entries Sales Report and Eagle View do not appear on this page because their conditions are false. The widget action depends on an existing non-empty tab set. The imported tab list depends on the selected dashboard having items, and the history area depends on the saved setting having history.

When saving or leaving goes wrong

Use the message or confirmation on screen to choose the bounded recovery action.

What you seeWhat it means or what to do
Your request was completed successfullyThe product's success message for the completed request.
An error occurred while processing your requestThe product's error message for a processing failure; review the intended change before retrying.
This Field Is RequiredA required field in the report-library add/edit popup is empty; enter the required tab name in New Tab.
You already have this tab in this dashboardThe selected tab already exists in the current dashboard; choose a different import choice.
Are you sure you want to ultimately delete this tab and all it's content ?The tab-deletion confirmation is open; select Cancel to stop or Delete to confirm.

After resolving a save or leave message, review the saved setting's history or choose the next report-setting destination.

Review the result and continue

Last Modifications is the saved setting's chronological history of user actions. It helps you review what was recorded after the setting was changed.

Prerequisites

  • The existing report-setting editor is open.
  • The saved record has a Last Modifications area.

Steps

  1. Select Last Modifications.

  2. Review the chronological sequence of user actions.

  3. Choose the next destination.

    If you need to…Open
    Review another saved settingThe report-settings list
    Create a setting instead of editing oneNew report setting
    Use the configured reportsThe Reports hub

Result: Last Modifications is available for reviewing the saved setting's action history, and the selected next destination is open.
