User layouts at a glance
User layouts are saved presentations of a list: they determine which columns you see and how the list is displayed. The User layouts list is part of the configuration area.
| If you need to… | Go to |
|---|---|
| Find the list | Find the User layouts list |
| Read fields and display controls | Understand the list and its fields |
| Maintain a layout | Choose and maintain a layout |
| Adjust display or export | Adjust the display and export the list |
| Handle an unavailable action or message | Handle unavailable actions and messages |
| Continue from a selected layout | What to do next |
| Return to the configuration layout area | Default layouts |
| Edit a saved layout in detail | Edit user layout |
| Personalize other list workspaces | Personalizing your workspace |
When you know which controls you need, review the conditions before opening the list.
Before you start
The list and its controls depend on the selected layout and the display settings available to you.
| Before you start | What to expect |
|---|---|
| The list area is available | The list appears only when a selected layout is present. |
| The list has loaded | The right-side action controls appear with the list. |
| Table-layout controls are available | Table Layout and its choices appear only when table-layout access is available. |
| Export is available | Export requires the export feature and remains disabled when export is unavailable. |
| A row is editable | Its edit link appears in the row. |
| Display settings are configured | Filter Row and Group Panel appear only when their corresponding settings are available. |
With these conditions in place, find the list in the configuration navigation.
Find the User layouts list
From this list, review a saved presentation before opening it for detailed editing.
Prerequisites
- You can open the configuration route.
Steps
- In the configuration navigation, select Users layouts.
- Confirm that the Users layouts tab is selected.
- Select Filter by: to open the filter area.
The list includes a status selection and a username text field when the selected layout is present.
Result: The Users layouts list is on screen with its filter entry point.
With the list open, review its fields, columns, and display controls.
Understand the list and its fields
The User layouts screen combines filters, a data grid (the table of results), and display settings so you can work from the columns in the selected layout.
| Field or choice | Type and rule | What it controls |
|---|---|---|
| Status selection | Select box; optional | Filters the list by status. |
| Username text field | Text box; optional | Filters the list by username. |
| Layout name | Text box; optional | Names a new layout. |
| Expand column width | Check box; optional | Toggles automatic column width. |
| Filter Row | Check box; optional | Shows or hides the grid filter row. |
| Group Panel | Check box; optional | Shows or hides the grid group panel. |
| File input in the shared popup | File input; optional | Accepts an uploaded file when that shared surface is used. |
The data grid uses the columns in the selected layout. Column names and their order therefore follow the layout currently in use. The grid supports paging, filtering, grouping, and sorting, remembers the list settings during the session, and uses a page size of 30.
The row filter and group panel appear when their corresponding display settings are available. The grid's Columns Chooser is disabled.
With the list structure clear, choose and maintain a layout.
Choose and maintain a layout
Use a layout when you want a saved column presentation for the User layouts list.
Prerequisites
- The selected layout and the Table Layout menu are available.
Steps
-

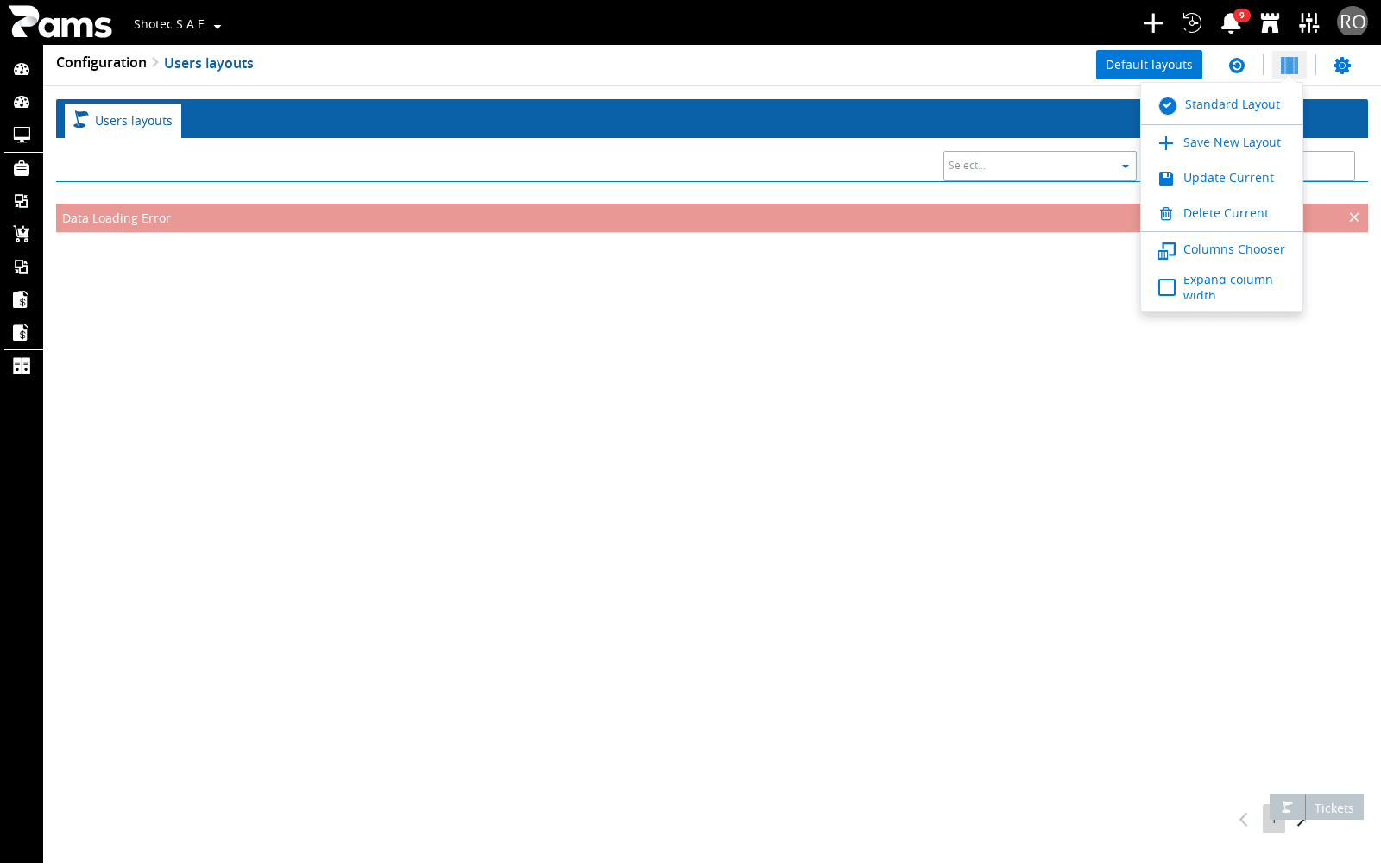

Select Table Layout.
If you need to… Complete this step Use an available saved presentation Select the required layout choice. Start a new presentation Select Save New Layout. Change the current presentation Select Update Current. Remove the current presentation Select Delete Current. Choose a saved layout or open a layout maintenance action.
Update Current and Delete Current are disabled for the standard layout.

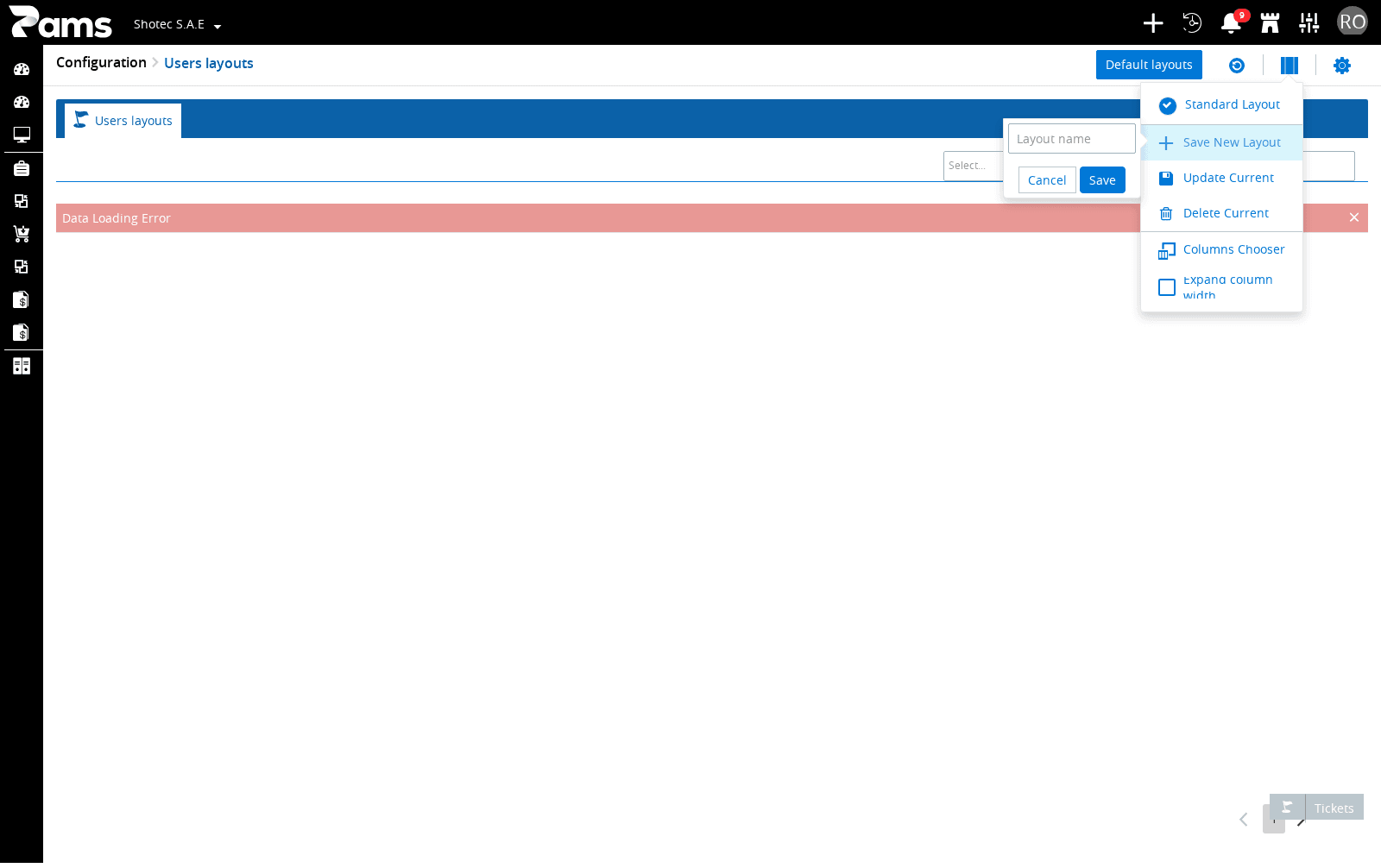

If you selected Save New Layout
- Enter the name in Layout name.
- Select Save.
Result: The new layout is submitted from the layout menu.
If you selected Update Current
Result: The current layout is updated from the layout menu.
If you selected Delete Current
- Review Are you sure?.
- Select Delete to confirm the deletion.
Result: The deletion confirmation closes after the selected response.
If you opened the deletion confirmation but do not want to remove the layout
- Select Cancel.
Result: The deletion confirmation closes without removing the layout.
Result: The selected layout remains active, or the layout maintenance surface closes after the selected action.
After choosing a layout, adjust the list display or open its export choices.
Adjust the display and export the list
Display settings change how the list is shown; export choices determine how the current list data is prepared for export.
Prerequisites
- The User layouts list is open.
- The relevant settings are available.
Steps
-

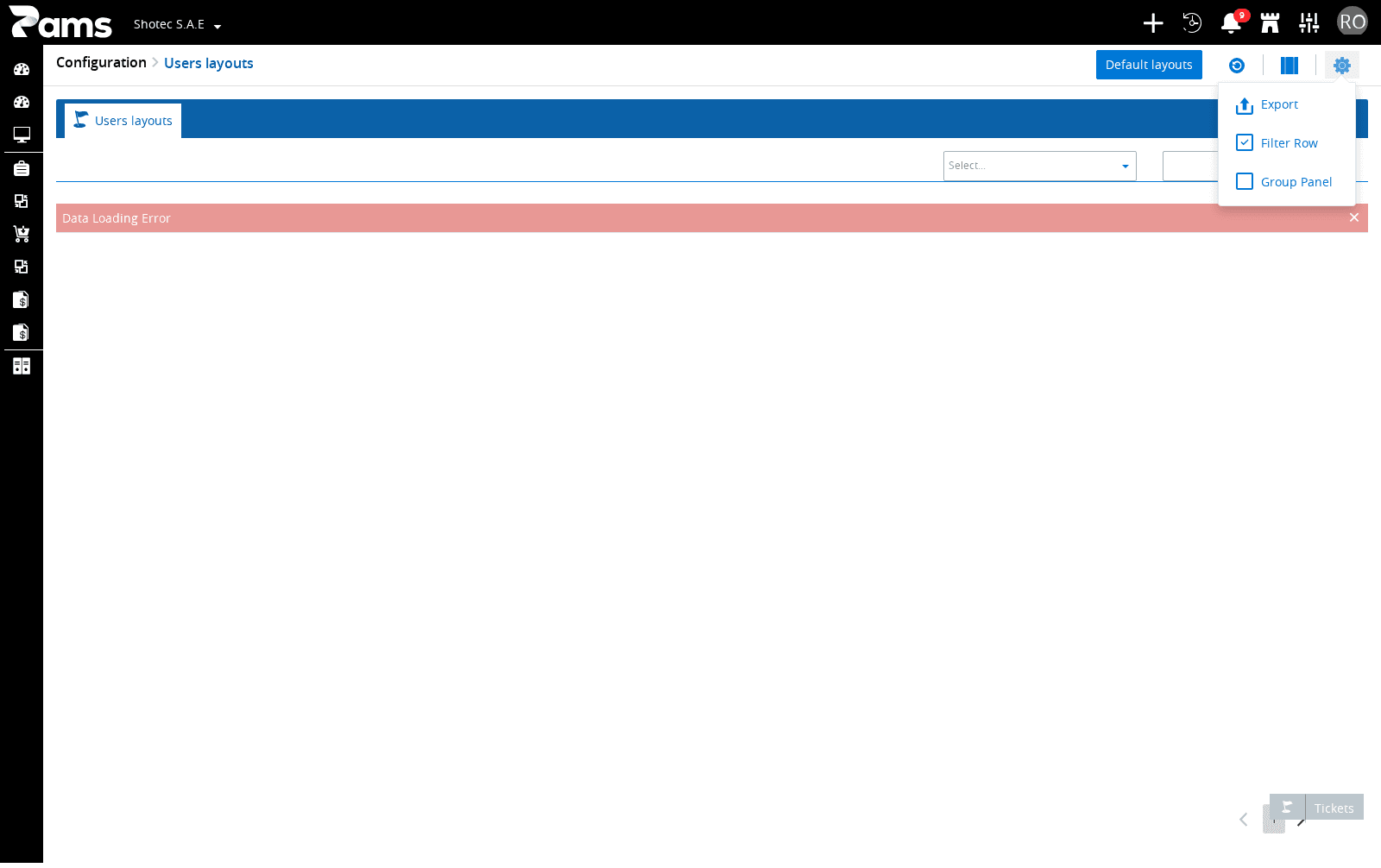

Select Settings.
If you need to… Complete this step Show or hide row filtering Select Filter Row. Show or hide grouping Select Group Panel. Start an export Select Export. Close export choices without exporting Select Export. Choose a display setting or open Export from Settings.

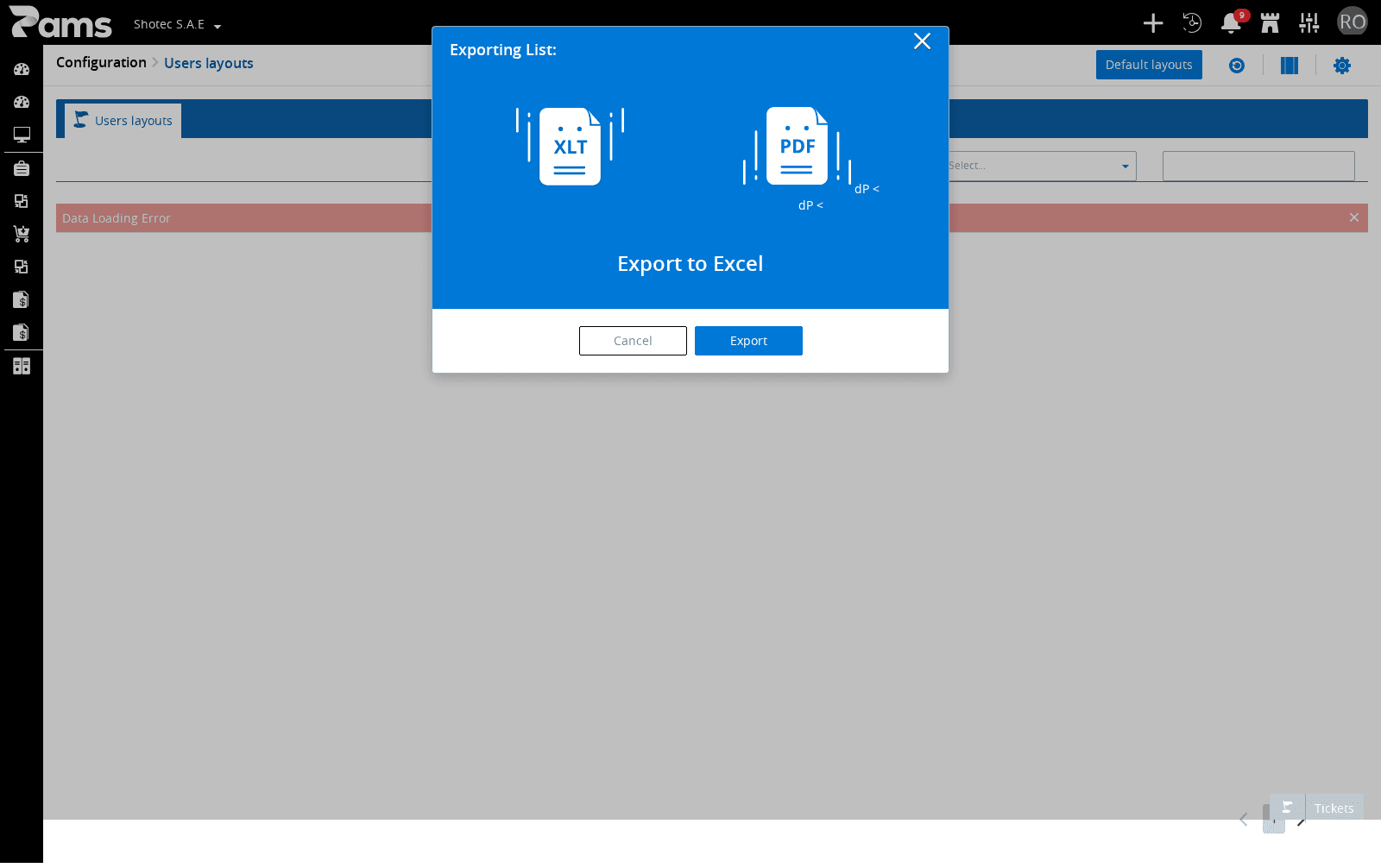

The export surface starts with Export to Excel; the other available choice is Export to PDF. When the data set is empty, the message NO Data to Export appears and the export does not start.
If you selected Filter Row
Result: The row-filter display changes.
If you selected Group Panel
Result: The group-panel display changes.
If you selected Export to start an export
- Select an option in Exporting List:.
- Select Export to start the export.
Result: The selected export format is submitted.
If you selected Export to close the choices
- Select Cancel.
Result: The Exporting List: dialog closes without an export.
Result: The list display reflects the selected setting, or the Exporting List: dialog is closed without an export.
If a control is unavailable or a message appears, use the handling table before continuing.
Handle unavailable actions and messages
The controls available on this screen depend on the selected layout, display settings, and export availability.
| What you see | What it means | What to do |
|---|---|---|
| No fixed set of data-column names | The selected layout determines which headers the list shows. | Read the headers in the selected layout. |
| No Import action in Settings | This list does not offer file import from Settings. | Use the available settings, or maintain a layout through Table Layout. |
| No create or delete controls appear in the list | Layout maintenance is available through Table Layout rather than the list. | Select Table Layout, then use Save New Layout or Delete Current when available. |
Error loading accounts | Account information did not load for the lookup. | Wait until the account information is available, then continue. |
NO Data to Export | The list has no data to send to the export dialog. | Use the status or username filters to locate data before exporting again. |
| Export is disabled | Export is not enabled for your configuration. | Review the list or change its display settings instead. |
| The list controls are absent after opening the configuration area | The page is not on the User layouts surface. | Select Users layouts from the configuration navigation. |
The messages Job Deleted Successfully, Job Ultimately Deleted, Server Error, and Data Importing completed belong to other or inactive flows on this surface. They are not actions to use from the User layouts list.
When the list work is complete, continue to the selected layout record or return to Default layouts.
What to do next
An opened layout row takes you to the detailed User layout record, where you continue layout editing.
Prerequisites
- The User layouts list contains the row you need.
Steps
- Select the required data row to open its layout record.
- Select Open in new tab from the row context menu when you need the layout record in another browser tab.
- Select Default layouts to return to the default-layouts area.
Result: The selected layout record opens for detailed work, the record opens in a new tab, or the Default layouts area is on screen.
