Default layouts
A default layout is the layout string assigned to one list number. Administrators select a list, retrieve or edit its layout, and save the value.
| If you need to… | Go to |
|---|---|
| Open the form or its related user-specific layout page | Open Default layouts |
| Identify the required fields and list choices | Fields |
| Retrieve, format, reset, or save a layout | Actions |
| Maintain one list's default layout | Maintain a default layout |
| Maintain user-specific layouts | Users layouts |
Before you start
You need the list number and layout value you want to maintain. List num and Layout are required, and the form validates both before save processing.
| Have or know | Why it matters |
|---|---|
| The list number | Get layout uses the selected List num value. |
| The layout string | Layout must contain a value before a valid save can proceed. |
| The required save behaviour | Save saves and remains on the form; Save and Close saves and leaves the form. |
Open Default layouts
Default layouts is the configuration form for maintaining a list's default layout. User-specific layouts are maintained on the related Users layouts page.
Prerequisites
- You have access to the configuration area.
Steps
- In the configuration area, select Default layouts.
- Select Users layouts when you need the related user-layouts page.
Result:
The selected page is open.

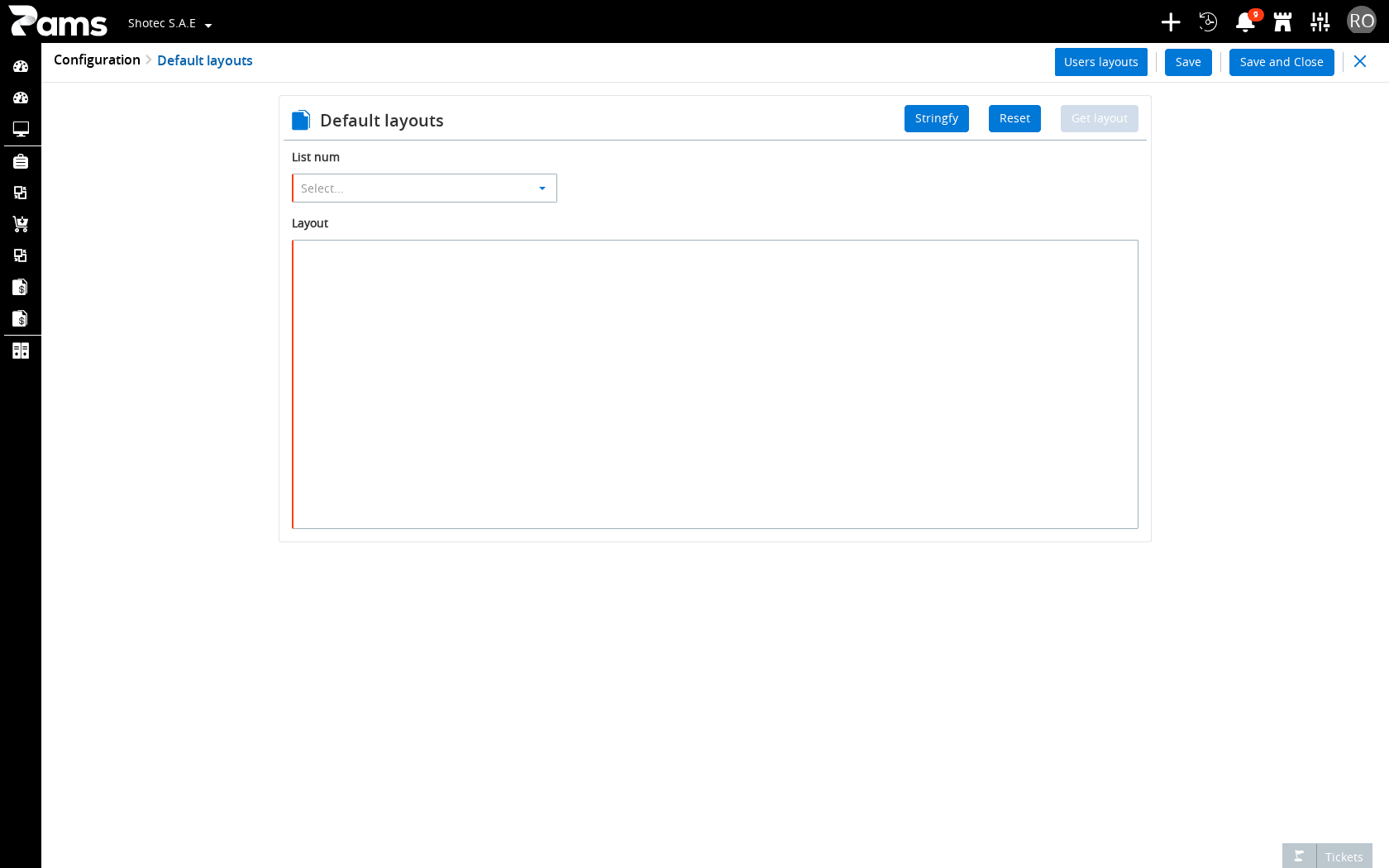

Understand the screen
The form contains two required fields: List num and Layout. Both fields belong to the form's validation group.
| Field | Type | Required | Use |
|---|---|---|---|
| List num | Select box | Yes | Choose the list whose default layout you maintain. |
| Layout | Text area | Yes | Enter or edit the layout string. |
Layout is editable. Its text area has a fixed height of 350, does not resize automatically, and selects its text when it receives focus. The screen has no grid, configurable field, tab group, or embedded feature surface.
Fields
Each List num option shows a display name and numeric ID. The options run from Activities (0)
to Outgoing Paymnet (126); examples include Registeration data (3) and
Job Profitabilty (123).
Actions
| Control | Use |
|---|---|
| Users layouts | Open the related user-layouts page. |
| Stringfy | Remove line breaks and whitespace outside quoted strings from Layout. |
| Reset | Replace the current layout with a new default layout. |
| Get layout | Retrieve the default layout for the selected list number. |
| Save | Save and remain on the form. |
| Save and Close | Save and leave the form. |
Get layout is disabled when List num has no value. Both Stringfy and Reset leave the page on Default layouts without opening a dialog or showing a toast.
Maintain a default layout
Retrieve or edit the default layout for one list number.
Prerequisites
- You know which list number to maintain.
- You have the layout string to enter or the saved configuration to edit.
Steps
-
In List num, select the list number.
-
Select Get layout.
-
In Layout, edit the layout value.
-
Select the action that matches your need:
If you need to… Select Remove line breaks and whitespace outside quoted strings Stringfy Replace the current layout Reset Save and remain on the form Save Save and leave the form Save and Close
Result:
The selected list's layout is retrieved or edited, and the chosen action is applied.
Handle validation and request outcomes
The form checks both required fields before save processing. If a required value is missing, the
field can show This Field Is Required. A successful request uses
Your request was completed successfully; an error uses
An error occurred while processing your request.
Know what’s next
Select Users layouts to maintain layouts associated with users rather than with a selected list number.
