Reference serial status

A serial status is a name in the configurable list that describes the status of a serial combination. Maintain it in the Status field, then use the saved name in serial-combination configuration.

If you need to…Go to
Check the list and identify an existing statusFind serial statuses
Understand the list column and required fieldUnderstand the serial-status screen
Choose an add, edit, or remove pathAdd, edit, or remove a serial status
Add a new statusAdd a serial status
Change an existing statusEdit a serial status
Remove a statusRemove a serial status
Check why an action or field is unavailableHandle access and action branches
Correct a validation or deletion problemWhen validation or deletion fails
Continue with serial-combination configurationSerial combinations
Continue with product-combination configurationProduct combinations

Before you start

Reference serial status maintenance is available through the shared configuration list when the subscription includes the feature and your permissions allow the action.

Prerequisites

  • The subscription includes the configuration feature.
  • You know the serial-status name to enter in Status.
  • For an edit or deletion, a saved serial-status row exists.
  • The required permission is available for the action you need.

The Status field appears in the new/edit popup after you select an item or open a new-item form. Permission-dependent actions appear when the corresponding permissions allow them.

Find serial statuses

The serial-status list is the configuration page where you locate the status name attached to a serial combination.

Prerequisites

  • The subscription includes the configuration feature.
  • You can open the Configuration area.

Steps

  1. Open Configuration.

  2. Open Reference list.

  3. Open Serial status.

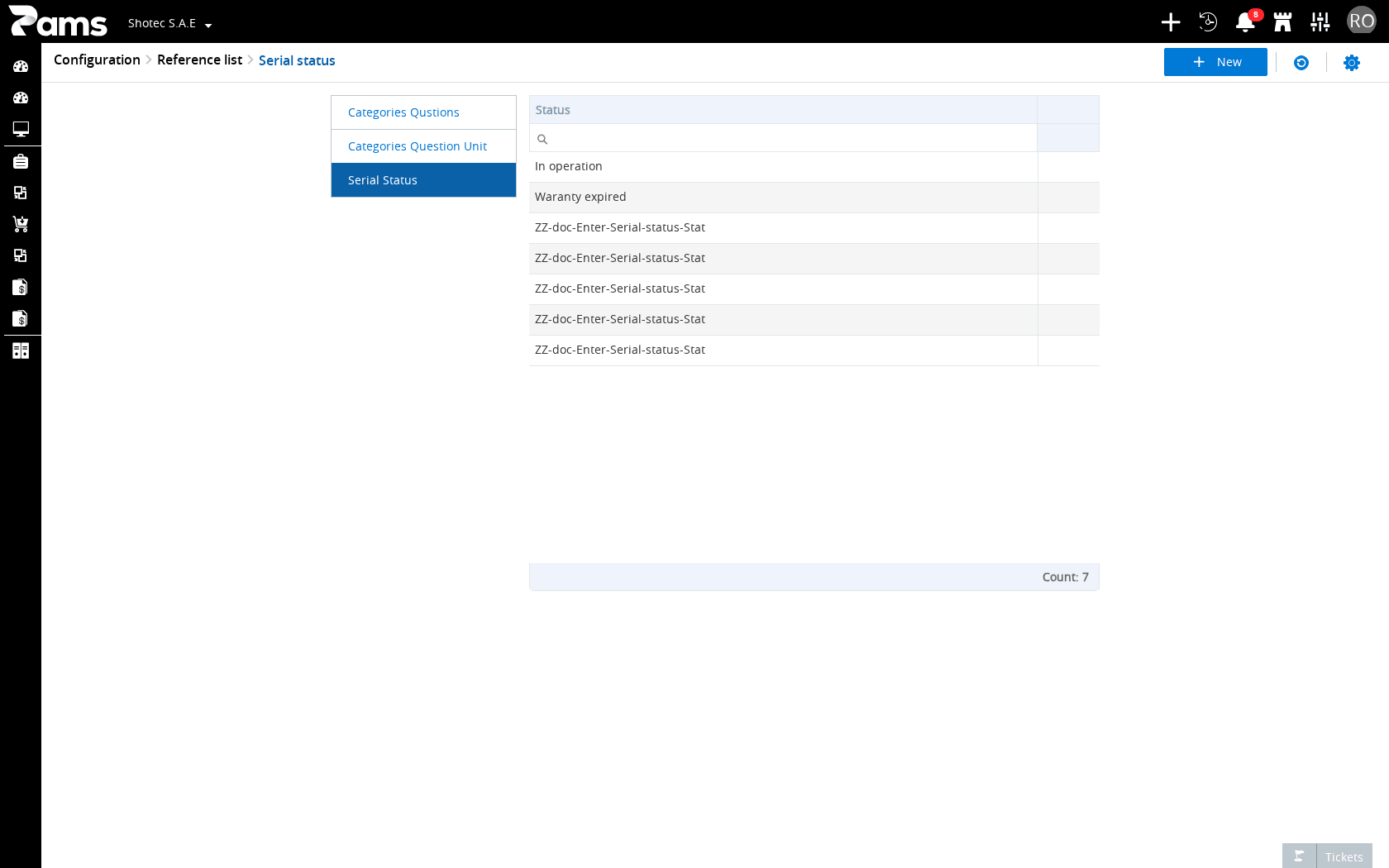

    Identify the Serial status page, the Status column, and the available list controls.
  4. Check the Status column to identify the row you need to maintain.

  5. Use the row's status name to distinguish it from the other entries.

The page heading is Serial status. The list contains seven records in the Status column. The visible list controls are New, Refresh, and Settings; Refresh and Settings are title-only buttons.

Result: The Serial status list is open, and you can identify an existing row by its Status value.

Understand the serial-status screen

The serial-status screen presents the status name in the list and in the maintenance popup. Status is the required value for each entry.

SurfaceWhat you use it forRule or visibility
StatusRead or enter the serial-status name.Visible list column and text field; required in the form.
Display order—Hidden column.
IdIdentify the record internally.Hidden identifier column.
CompanyBranchID—Hidden column.

No other field appears on this page. Available columns may differ between configuration lists, so use the headers visible in your list.

The list view does not display labelled form fields, validation messages, or dialogs. The Status field appears as a text box in the new/edit popup for a selected item.

Add, edit, or remove a serial status

Choose whether you are creating a new status, changing a saved row, or starting its removal.

Prerequisites

  • The Serial status list is open.
  • For a new status, New is available.
  • For an edit, a saved row and edit permission are available.
  • For a removal, a saved row and delete permission are available.

Steps

  1. Choose the action that matches the work you need to do.

    If you need to…SelectContinue with
    Create a statusNewAdd a serial status
    Change a saved statusThe edit control in the rowEdit a serial status
    Start removing a saved statusThe row's Delete iconRemove a serial status

Result: The new-item form, edit form, or row delete menu opens for the action you selected.

Add a serial status

Create a status name for later serial-combination work.

Prerequisites

  • The Serial status list is open.
  • New is available.
  • You know the serial-status name to enter.

Steps

  1. Select New to open the new-item form.
  2. In Status, enter the serial status name.
  3. Select OK to submit the new popup.
  4. If the form shows Forbidden characters detected. Please remove them and try again., remove the forbidden characters from Status.
  5. Select OK again after the value satisfies the field rule.

Result: A successfully saved entry displays Data saved Successfully, and the serial-status list is available for checking the new row.

Edit a serial status

Change the name on an existing serial-status row.

Prerequisites

  • The Serial status list is open.
  • The saved row is visible.
  • Edit permission is available.

Steps

  1. Select the edit control in the row to open the edit form.
  2. In Status, change the serial status name.
  3. Select OK to submit the edit popup.

Result: A successfully updated entry displays Data updated Successfully, and the list is available for checking the revised Status value.

Remove a serial status

Remove a selected serial status when deletion is allowed.

Prerequisites

  • The Serial status list is open.
  • The row to remove is visible.
  • Delete permission is available.

Steps

  1. Select the row's Delete icon to open the row delete menu.

  2. Choose the outcome you need.

    If you want to…Select
    Keep the rowCancel. The delete menu closes and the row remains.
    Remove the rowDelete, then confirm Are you sure you want to delete this item?.

Result: A successful removal displays Data Deleted Successfully, and the list is available for checking that the selected status is no longer present.

Handle access and action branches

The shared configuration list changes which surfaces appear according to subscription inclusion and your permissions.

ConditionWhat changes
The subscription includes the featureThe configuration grid can appear.
The subscription includes the feature and the new-item control is not hiddenNew can appear.
Editing permission is grantedThe edit control in the row can appear.
Deleting permission is grantedThe row Delete menu can appear.
Export permission is grantedExport can appear.
Import permission is grantedImport controls can appear.

The list showed New. Import, export, edit, and delete actions depend on your permissions.

Steps

  1. If Export is available, select Export.
  2. Select Export to Excel.
  3. Select Cancel to close the export options.

Result: The available action surface reflects the subscription and permissions for the account, and the export options are closed after Cancel.

When validation or deletion fails

Use the message shown on screen to identify whether the value needs correction, the selected row is protected, or the deletion could not complete.

What you seeWhat it meansWhat to do
Status is requiredStatus has no value.Enter the serial status name in Status, then submit the popup again.
Forbidden characters detected. Please remove them and try again.The value contains a forbidden character.Remove the forbidden character from Status, then select OK.
Related to Saved data, Can't be deletedThe selected status is related to saved data.Keep the status and address the related saved data before attempting removal again.
Failed to DeleteThe deletion did not complete.Keep the row and investigate the deletion condition or permission before retrying.
Must have at least one itemThe list cannot be reduced below one item.Keep at least one status in the list.
Data saved SuccessfullyThe new status was saved.Check the list for the new Status value.
Data updated SuccessfullyThe existing status was updated.Check the list for the revised Status value.
Data Deleted SuccessfullyThe selected status was deleted.Check the list to confirm the row is gone.

When a save fails at the server, the screen displays parsed server error text. The exact wording depends on the server response.

After maintaining a serial status

After maintaining a status, continue with Serial combinations or Product combinations when your next task is to configure the serial-combination relationship.
