Use this page to enter a warehouse record and understand which configuration surfaces become available after the record is saved.

New warehouse at a glance

A warehouse record identifies a storage location, its description, its store type and administrator, the branches it serves, and its address. The New warehouse page is the starting point for recording that information before the warehouse has an existing record ID.

If you need to…Go to
Check the information and choices on the unsaved formUnderstand the warehouse form
Enter the warehouse information and choose how to leave the pageEnter and save warehouse details
Work with areas, inventory settings, or modification history after savingUse the saved warehouse surfaces
Find the warehouse listWarehouses
Edit a saved warehouseEdit warehouse
Configure the warehouse inspection baseWarehouse inspection base

The form can assign the warehouse to one or more branches and includes an address surface. After a new warehouse is saved, the record stays open unless you use Save and Close.

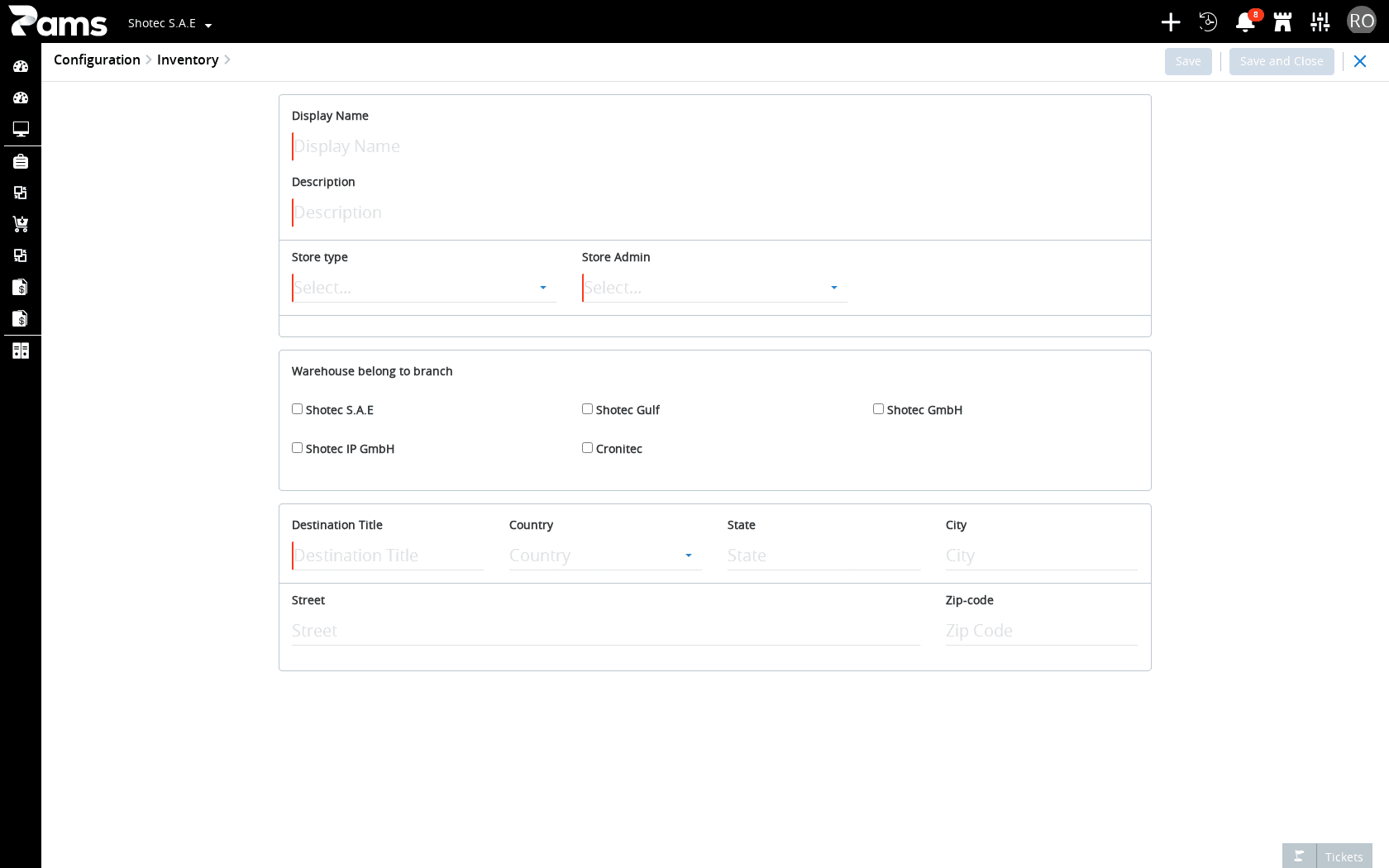

The new warehouse form with its identity, branch, and address fields

Before you start

Collect the name, description, store type, store administrator, branch assignment, and address information before you begin. The form requires Display Name, Description, Store type, and Store Admin; the page also marks Destination Title as required. The branch-selection control and its options are available on the form.

Have or knowWhy it matters
The warehouse display name and descriptionThese are required warehouse details.
The store type and store administratorThese are required choices on the form.
The branches that use the warehouseThe warehouse can be assigned to one or more branches.
The destination title and addressThe address surface includes Destination Title, Country, State, City, Street, and Zip-code.
Access to the new warehouse pageCreate a warehouse record.

The form and its save controls are available only when the warehouse data is present, the page is not unavailable, and the subscription permits the surface. Save controls also depend on edit permission and on unsaved data changes.

Open the New warehouse page

The new warehouse page is the blank-record page; the warehouse list is a separate saved-record surface.

Prerequisites

  • Have access to the warehouse configuration area.

Steps

  1. Open the New warehouse page.

    The route open with the Display Name field ready for entry

Result: The new-warehouse form is on screen with its warehouse fields, branch-selection control, address fields, Save, and Save and Close.

Understand the warehouse form

The warehouse form collects the identity, assignment, store administration, and address details that describe where warehouse work is managed. On a new record, the form shows the entry fields but not the saved-record tabs Areas, Inventory Model, or Last Modifications.

Warehouse details

Field or controlWhat to enter or chooseRequirement or availability
Display NameThe warehouse's displayed nameRequired
DescriptionA description of the warehouseRequired
Store typeChoose an option displayed in Store typeRequired
Store AdminChoose an option displayed in Store AdminRequired
Warehouse belong to branchThe branch assignmentThe control and its options are displayed; the field is not marked required

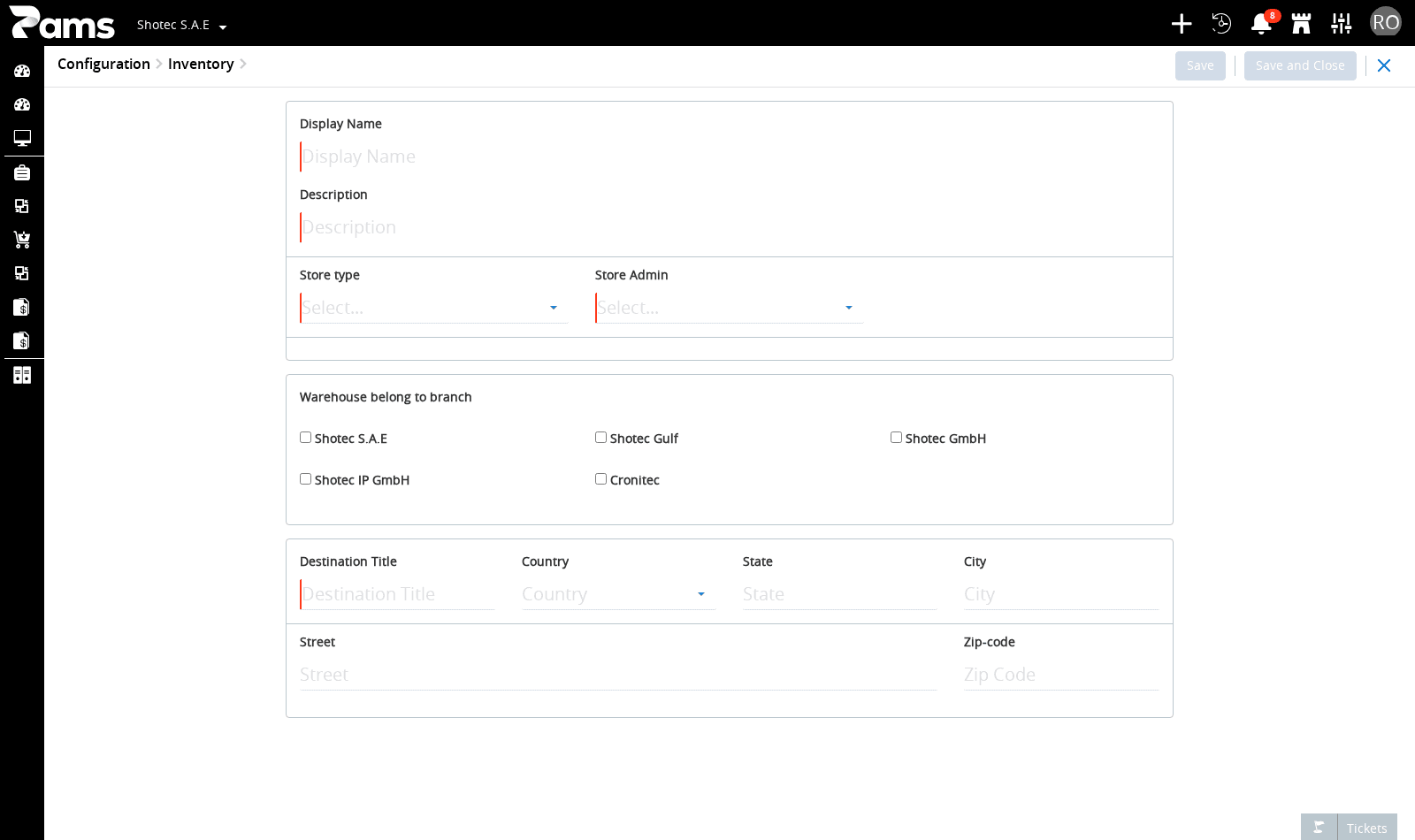

Store type choices

Store type and Store Admin are required choices used while defining the warehouse.

Address details

Address fieldRequirement or availability
Destination TitleDisplayed and marked required
CountryDisplayed
StateDisplayed
CityDisplayed
StreetDisplayed
Zip-codeDisplayed

The address is part of the new-warehouse form. The address fields other than Destination Title are displayed without a required marker.

The Description field and required fields on the new warehouse form

Enter and save warehouse details

Enter the warehouse information, then choose how to save the record. The form saves a new warehouse when no record ID exists; the same Save control updates a warehouse when an existing ID is present. Save and Close saves and leaves the page.

Prerequisites

  • Have the required warehouse information listed in Before you start.
  • Have edit access to the warehouse form.

Steps

  1. In Display Name, enter the warehouse name.

  2. In Description, enter the warehouse description.

  3. In Store type, choose an option displayed in Store type.

  4. In Store Admin, choose an option displayed in Store Admin.

  5. In Warehouse belong to branch, select the branches that use the warehouse.

  6. In the address surface, enter Destination Title.

  7. In the address surface, enter Country.

  8. In the address surface, enter State.

  9. In the address surface, enter City.

  10. In the address surface, enter Street.

  11. In the address surface, enter Zip-code.

  12. Choose how to save the record.

    If you need to…Select
    Keep the record openSave
    Save the record and leave the pageSave and Close

If a required field is empty, the form uses the message This Field Is Required.

  1. If the save succeeds, look for Your request was completed successfully.

Result: Save keeps the record open. Save and Close saves the record and leaves the page. The success message is Your request was completed successfully when that success response is shown.

Use the saved warehouse surfaces

Saved-record surfaces extend the warehouse record beyond the initial entry form. They require an existing warehouse record ID, so use them after saving the new record.

Surface or actionWhat it provides
AreasThe warehouse areas surface and its area grid
Inventory ModelThe warehouse inventory-model surface
Last ModificationsThe audit history surface
New-area iconOpens the new warehouse-area popup
Edit-area iconOpens the editor for a non-default area
DeleteDeletes a non-default area
Inventory Model save controlUpdates the warehouse model

The Areas grid shows the columns Name, Short name, Description, X position, Y position, and Z position. The area popup does not provide the fields Short name, Area Admin, X position, Y position, and Z position. Area edit and delete actions require an existing area row and edit permission. The New area action also requires the Areas surface and edit permission.

The Inventory Model surface provides these choices:

Inventory model option
Only Storage Products/goods
Storage with on site assembly area for products/goods
Have standalone assembly area for products/goods

The saved-record tabs require an existing warehouse ID. Before that condition is met, the new record shows the entry form instead.

Note: Complete the new-record save before using the saved-record tabs and their actions.

When saving or loading goes wrong

Use the message on screen to decide whether to correct a field, check access or subscription, or return to the appropriate saved-record route.

What you seeWhat it meansWhat to do
This Field Is RequiredA required field is empty.Return to the required field and enter or choose its value before selecting Save or Save and Close.
Your request was completed successfullyThe warehouse save completed without an error.Continue with the saved warehouse surface or the next task.
An error occurred while processing your requestThe save returned an error.Resolve the error before trying again.
You cannot change or delete records developed by PamsThe record is protected from change or deletion.Do not attempt to change or delete that record; use a record you are permitted to administer.
The subscription message appearsThe subscription does not include the surface.Contact the person who manages your subscription before continuing.
The not-found page appearsThe requested page or record cannot be found.Return to the warehouse list and open the required saved record from there.

What to do next

Your next taskContinue with
Review registered warehousesWarehouses
Edit a saved warehouseEdit warehouse
Configure the warehouse inspection baseWarehouse inspection base

The list page is the saved-warehouse starting point. Continue to Edit warehouse for a saved record, or to Warehouse inspection base for inspection-base configuration.
