Build a Qwik diagram

Render a resumable diagram with GrafloriaFlow and keep its callbacks in QRLs.

The first idea

Qwik is a thin binding over Grafloria's shared headless engine: you provide node and edge data to the component, and the engine renders and manages the diagram.

Prerequisites

Use Qwik 1.x (@builder.io/qwik 1.5 or later) with a Qwik SSR application. The Qwik package is version 0.10.6 and requires @grafloria/engine 0.3.x, @grafloria/renderer 0.4.x, and @grafloria/element 0.4.x.

Install the binding and its peer packages:

bash
Copy
npm install @grafloria/qwik @grafloria/engine @grafloria/renderer @builder.io/qwik @grafloria/element

Render the flow

Create a route component such as src/routes/index.tsx. Type the data with NodeSpec and EdgeSpec, then bind the signal values to the flow. The DiagramInstance passed to onInit$ gives you the mounted diagram handle.

tsx
Copy
import { component$, $, useSignal } from '@builder.io/qwik';
import {
  GrafloriaFlow,
  type DiagramInstance,
  type EdgeSpec,
  type NodeSpec,
} from '@grafloria/qwik';

export default component$(() => {
  const nodes = useSignal<NodeSpec[]>([
    { id: 'start', position: { x: 80, y: 120 }, label: 'Start' },
    { id: 'finish', position: { x: 360, y: 120 }, label: 'Finish' },
  ]);
  const edges = useSignal<EdgeSpec[]>([
    { id: 'start-finish', source: 'start', target: 'finish' },
  ]);

  const handleInit = $((instance: DiagramInstance) => {
    instance.fitView();
  });
  const handleNodesChange = $((next: NodeSpec[]) => {
    nodes.value = next;
  });

  return (
    <GrafloriaFlow
      nodes={nodes.value}
      edges={edges.value}
      onInit$={handleInit}
      onNodesChange$={handleNodesChange}
      style={{ width: '800px', height: '400px' }}
    />
  );
});

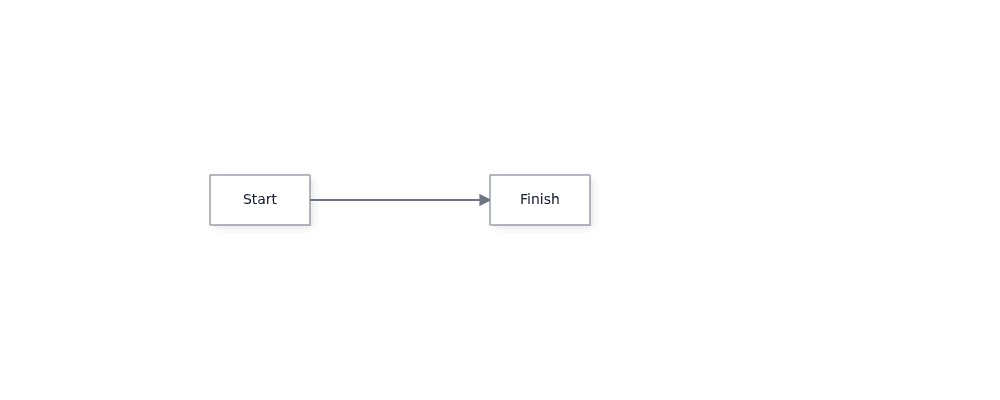

The mounted component renders two labelled boxes joined by a link. fitView() frames the content when the instance is ready, and onNodesChange$ writes edited nodes back to the signal. The $ suffix keeps both callbacks in QRLs that Qwik can load lazily.

1. Start the Qwik SSR dev server. In the Grafloria Qwik demo repository, use the SSR mode explicitly:

bash
Copy
npx vite --config apps/demos-qwik/vite.config.ts --mode ssr

Open http://localhost:4290/ in that repository, or start your own Qwik application with its normal SSR command. The server-rendered page contains the diagram host; Qwik resumes the component in the browser rather than walking the component tree through a hydration pass.
