Use a mounted DiagramInstance as the host, then register the tool that owns the gesture. Grafloria supplies freehand drawing, erasing, and rectangle creation; use registerTool when you need a host-specific interaction such as marquee selection.
Mount a canvas and add a drawing tool
Give the host a resolved height. render returns the live instance, and the drawing tool writes a committed vector stroke into its model when the pointer is released.
tsimport {
createDrawTool,
registerTool,
render,
} from '@grafloria/element';
const host = document.createElement('div');
document.body.append(host);
host.style.height = '480px';
const instance = render({ nodes: [{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }], edges: [] }, host);
registerTool(createDrawTool(instance, {
color: '#e11d48',
width: 3,
simplifyEpsilon: 0.8,
}));
// Keep the disposer returned by registerTool and call it when the feature is unloaded.
After a drag, the canvas shows a red SVG stroke. The model contains one simplified stroke for the gesture, so the gesture is one editable history operation rather than a screenshot.
Choose the shipped whiteboard tools
The same mounted instance is the host for the eraser and rectangle tools. An eraser removes whole strokes that the pointer sweep crosses. A rectangle drag creates a real node, not ink, so the result participates in connection, resize, and layout behavior.
tsimport {
createEraserTool,
createRectangleTool,
registerTool,
render,
} from '@grafloria/element';
const host = document.createElement('div');
document.body.append(host);
host.style.height = '480px';
const instance = render({ nodes: [{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }], edges: [] }, host);
registerTool(createEraserTool(instance, { radius: 10 }));
registerTool(createRectangleTool(instance, {
fill: '#dbeafe',
stroke: '#2563eb',
strokeWidth: 2,
label: 'Box',
}));
// Activate one point-agnostic mode at a time in your toolbar.
Do not leave competing mode tools active: draw, rectangle, and eraser can all claim an empty-canvas pointerdown. The registry chooses the claiming tool with the highest priority; ties fall back to registration order, which is not a contract. A tool disposer restores the previous tool with the same id.
Add a custom interaction
Use registerTool for a gesture the built-in binder does not own. A CanvasTool claims a pointerdown in hitTest; its pointer handlers then receive the rest of that gesture. Set an explicit priority whenever another tool can claim the same press.
This skeleton claims only an empty-canvas press and gives you world and screen coordinates for a host-owned overlay:
tsimport type { CanvasTool } from '@grafloria/renderer';
import { registerTool } from '@grafloria/element';
import { render } from '@grafloria/element';
const host = document.createElement('div');
host.style.height = '480px';
document.body.append(host);
render({ nodes: [{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }], edges: [] }, host);
let start: { x: number; y: number } | undefined;
const marquee: CanvasTool = {
id: 'marquee',
priority: 1,
hitTest: (_event, hit) => hit.empty,
onPointerDown: (event) => {
start = { x: event.world.x, y: event.world.y };
},
onPointerMove: (event) => {
if (start) {
// Paint your overlay from start to event.screen here.
console.log(start, event.screen.x, event.screen.y);
}
},
onPointerUp: (event) => {
if (start) {
// Convert the world rectangle into the selection your application wants.
console.log(start.x, start.y, event.world.x, event.world.y);
}
start = undefined;
},
onCancel: () => {
start = undefined;
},
};
registerTool(marquee);
The custom tool itself does not draw the overlay or select nodes: those are host responsibilities. The live marquee example shows the complete version, including a dashed overlay and full-containment selection.

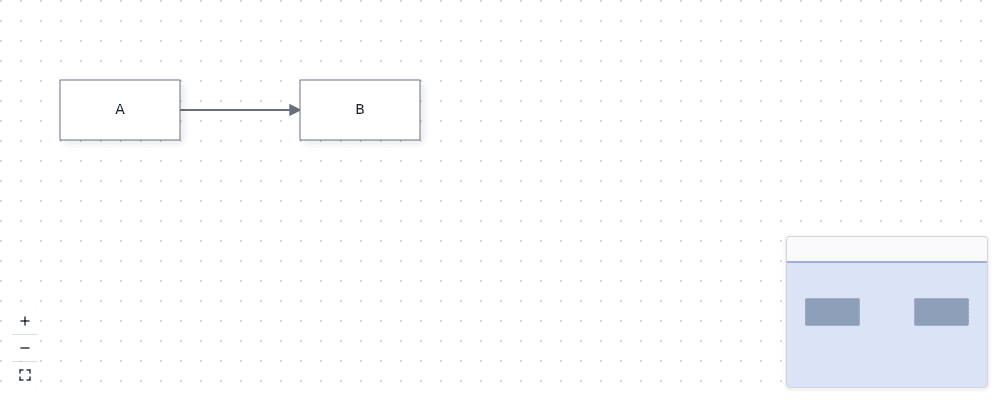

Use the same setup in each framework
Register after the binding provides the mounted instance, and keep the canvas host sized.
html<div id="canvas" style="height:480px"></div>
<script type="module">
import { createDrawTool, registerTool, render } from '@grafloria/element';
const host = document.getElementById('canvas');
if (!host) throw new Error('Missing #canvas');
const instance = render({ nodes: [{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }], edges: [] }, host);
registerTool(createDrawTool(instance, { color: '#e11d48', width: 3 }));
</script>
tsximport { useRef } from 'react';
import { GrafloriaFlow, type DiagramInstance } from '@grafloria/react';
import { createDrawTool, registerTool } from '@grafloria/element';
export function CanvasTools() {
const host = useRef<HTMLDivElement | null>(null);
const onInit = (instance: DiagramInstance) => {
if (host.current) registerTool(createDrawTool(instance, { color: '#e11d48', width: 3 }));
};
return <div ref={host} style={{ height: '480px' }}><GrafloriaFlow defaultNodes={[{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }]} defaultEdges={[]} style={{ height: '100%' }} onInit={onInit} /></div>;
}
vue<script setup lang="ts"> import { ref } from 'vue'; import { GrafloriaFlow, type DiagramInstance } from '@grafloria/vue'; import { createDrawTool, registerTool } from '@grafloria/element'; const host = ref<HTMLElement | null>(null); function onInit(instance: DiagramInstance) { if (host.value) registerTool(createDrawTool(instance, { color: '#e11d48', width: 3 })); } </script> <template><div ref="host" style="height:480px"><GrafloriaFlow :default-nodes="[{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }]" :default-edges="[]" style="height:100%" @init="onInit" /></div></template>
tsimport { Component } from '@angular/core';
import { GrafloriaDiagramComponent } from '@grafloria/angular';
import { createDrawTool, registerTool } from '@grafloria/element';
import type { DiagramInstance } from '@grafloria/renderer';
@Component({ standalone: true, imports: [GrafloriaDiagramComponent], template: '<grafloria-diagram [spec]="spec" (ready)="onReady($event)" style="display:block;height:480px"></grafloria-diagram>' })
export class CanvasToolsComponent {
spec = { nodes: [{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }], edges: [] };
onReady(instance: DiagramInstance): void {
registerTool(createDrawTool(instance, { color: '#e11d48', width: 3 }));
}
}
tsximport { $, component$, useSignal } from '@builder.io/qwik';
import { GrafloriaFlow, type DiagramInstance } from '@grafloria/qwik';
import { createDrawTool, registerTool } from '@grafloria/element';
export default component$(() => {
const host = useSignal<HTMLDivElement>();
return <div ref={host} style={{ height: '480px' }}><GrafloriaFlow defaultNodes={[{ id: 'start', position: { x: 80, y: 80 }, label: 'Start' }]} defaultEdges={[]} style={{ height: '100%' }} onInit$={$((instance: DiagramInstance) => registerTool(createDrawTool(instance, { color: '#e11d48', width: 3 })))} /></div>;
});
