JavaScript quick start

Render a 400px-high canvas with two connected nodes, keep its instance for later calls, and clean it up when you close the editor.

Grafloria's framework bindings are thin skins over one headless model: specs describe your intent, live models hold the data, and the engine owns behavior.

Prerequisites

Use a browser project with an HTML entry point and an ESM bundler. No UI framework is required. This example uses Vite and TypeScript for typed specs; it runs in the browser, not Node.

@grafloria/element 0.5.0 requires @grafloria/engine ^0.4.0 and @grafloria/renderer ^0.5.0 as peers. In your project directory, install all three packages and the example's development tools:

bash
Copy
npm install @grafloria/element@0.5.0 @grafloria/engine@^0.4.0 @grafloria/renderer@^0.5.0
npm install --save-dev vite typescript

1. Give the canvas a size

Create index.html at your project root. The canvas has a resolved height before the diagram mounts. The button closes the editor; it does not run during setup.

html
Copy
<!doctype html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1" />
    <title>Grafloria quick start</title>
  </head>
  <body>
    <section id="editor">
      <button id="close-editor" type="button">Close diagram</button>
      <p id="status" role="status"></p>
      <div id="canvas" style="width: 100%; height: 400px;"></div>
    </section>
    <script type="module" src="/src/main.ts"></script>
  </body>
</html>

For other sizing arrangements, see Theme a canvas.

2. Mount two connected nodes

Call render with the spec first, the target second, and instance options third. It mounts the diagram and returns a live DiagramInstance.

Create src/main.ts, the entry file. Type the data with NodeSpec and EdgeSpec, and use the shipped LIGHT_THEME. The edge names the nodes by their ids; its handles pin the connection to the right side of Ingest and the left side of Publish. Omit ports to use the nodes' four default ports.

ts
Copy
import { render } from '@grafloria/element';
import { LIGHT_THEME } from '@grafloria/renderer';
import type { EdgeSpec, NodeSpec } from '@grafloria/renderer';

const container = document.getElementById('canvas');
const editor = document.getElementById('editor');
const closeControl = document.getElementById('close-editor');
const status = document.getElementById('status');

if (!container || !editor || !closeControl || !status) {
  throw new Error('The editor elements are missing');
}
container.style.height = '400px';
container.style.width = '100%';
const closeButton = document.createElement('button');
closeButton.id = 'close-editor';
closeButton.type = 'button';
closeButton.textContent = 'Close diagram';
closeControl.replaceWith(closeButton);
editor.append(closeButton, status, container);

  const nodes: NodeSpec[] = [
    {
      id: 'a',
      position: { x: 60, y: 80 },
      size: { width: 180, height: 80 },
      label: 'Ingest',
    },
    {
      id: 'b',
      position: { x: 380, y: 80 },
      size: { width: 180, height: 80 },
      label: 'Publish',
    },
  ];
  const edges: EdgeSpec[] = [
    {
      id: 'e1',
      source: 'a',
      target: 'b',
      sourceHandle: 'right',
      targetHandle: 'left',
    },
  ];

const api = render({ nodes, edges }, container, {
    theme: LIGHT_THEME,
    fitView: true,
  });
const model = api.getModel();
status.textContent = `${model.getNodes().length} nodes connected by ${model.getLinks().length} edge`;

closeButton.addEventListener('click', () => {
  api.dispose();
  editor.remove();
}, { once: true });

fitView: true frames the content on mount. The nodes render side by side with a line between them.

Pass data to render(): an object spec or its JSON string, not Mermaid text. To import text instead, see Save and restore documents.

3. Keep the instance and clean up on close

The entry file keeps the returned instance in api, queries its live data for the status, and calls dispose() from the close handler before removing the editor.

getModel() returns the live DiagramModel, not a copy of your input specs. Use the instance for rendering operations such as fitView(); use getEngine() to reach the DiagramEngine for commands, layout, and validation. See Instance and lifecycle for the next instance operations.

On close, dispose() detaches interaction listeners, stops scheduled rendering, disconnects resize observation, and removes the diagram's DOM. In an application with route or component lifecycle hooks, put that call in the editor's unmount hook instead.

Start the development server from your project directory:

bash
Copy
npx vite

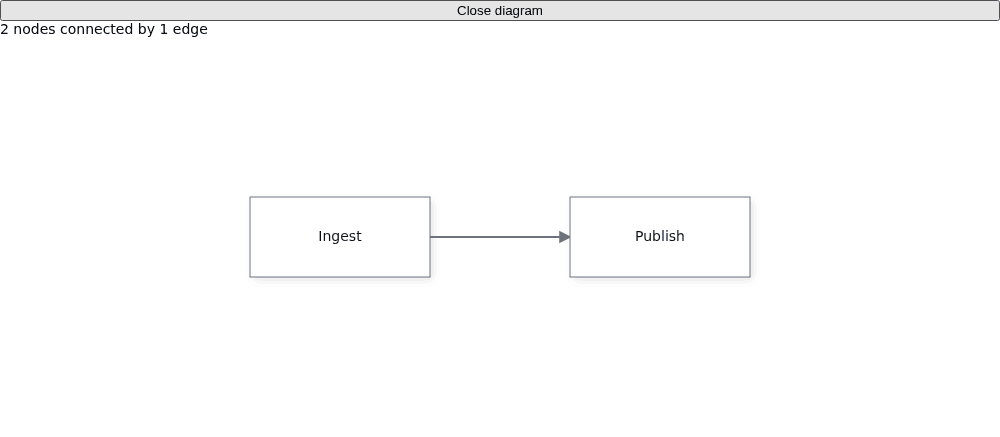

Open the local URL Vite prints. You have a sized diagram containing Ingest and Publish, their connecting edge, a status showing the mounted model's counts, and a Close diagram button. Closing removes the editor and releases the instance.

Where next

• Explore the live JavaScript demos and their source tabs.
• Add HTML node content with JavaScript elements and content.
• Add editing actions with Commands and history.
• Learn the relationship between specs, models, and the engine in How Grafloria works.
