Angular quick start

Mount a standalone Angular canvas with two connected nodes, two-way data bindings and a button that frames the diagram through viewChild.

Framework bindings are thin skins over one headless model: specs describe your intent, live models hold the data, and the engine owns behavior.

Prerequisites

Use an existing standalone Angular CLI application. The binding supports Angular 18.1, 19, 20, 21 and 22, with RxJS ^7.8.0. Keep @angular/common, @angular/core, @angular/forms and @angular/platform-browser on the same Angular version as your application. This sample runs in the browser.

1. Install the binding

Run this in your application's directory:

bash
Copy
npm install @grafloria/angular@0.14.0 @grafloria/renderer@0.5.0 @grafloria/engine@0.4.0 @grafloria/element@0.5.0 rxjs@^7.8.0

You get the Angular component and its engine, renderer and element peers. Import DiagramCanvasComponent into your standalone component; the canvas needs no library stylesheet import, NgModule or provider.

2. Define the flow and mount the canvas

Replace src/app/app.component.ts with the following component. Describe the initial data with NodeSpec and EdgeSpec. The binding accepts both specs and live models, so use NodeInput and EdgeInput for the two-way signals, matching the canvas's readonly, optional collection types.

ts
Copy
import { Component, signal, viewChild } from '@angular/core';
import { DiagramCanvasComponent } from '@grafloria/angular';
import type {
  EdgeInput,
  EdgeSpec,
  NodeInput,
  NodeSpec,
} from '@grafloria/renderer';

const initialNodes: NodeSpec[] = [
  {
    id: 'a',
    position: { x: 60, y: 80 },
    size: { width: 180, height: 80 },
    label: 'Ingest',
  },
  {
    id: 'b',
    position: { x: 380, y: 80 },
    size: { width: 180, height: 80 },
    label: 'Publish',
  },
];
const initialEdges: EdgeSpec[] = [
  { id: 'e1', source: 'a', target: 'b' },
];

@Component({
  selector: 'app-root',
  standalone: true,
  imports: [DiagramCanvasComponent],
  template: `
    <button type="button" (click)="fit()">Fit diagram</button>
    <grafloria-diagram-canvas
      [(nodes)]="nodes"
      [(edges)]="edges"
      [plugins]="true"
      style="display:block; width:100%; height:400px"
    />
  `,
})
export class AppComponent {
  readonly nodes = signal<readonly NodeInput[] | undefined>(initialNodes);
  readonly edges = signal<readonly EdgeInput[] | undefined>(initialEdges);
  readonly canvas = viewChild.required(DiagramCanvasComponent);

  fit(): void {
    this.canvas().fitToContent(40);
  }
}

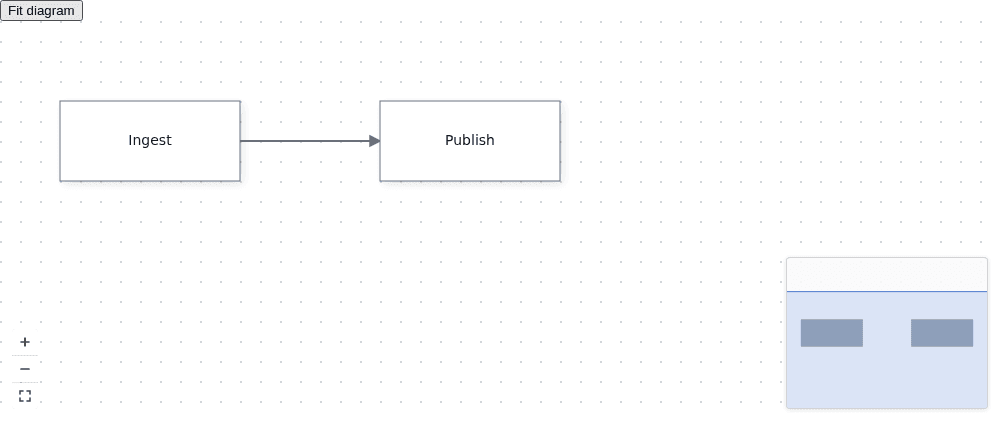

The canvas shows Ingest on the left, Publish on the right and an edge between them. [plugins]="true" adds the shipped minimap, zoom/fit controls and background grid; you do not need to build those controls yourself. The component has an explicit 400-pixel height; see Theme a canvas for container sizing.

[(nodes)] and [(edges)] form the controlled return path. The canvas reconciles incoming arrays into its live model, then writes new spec arrays back through the model signals when the model changes. Dragging a node therefore updates your application state, not only the rendered box. You do not need separate change handlers for these two-way bindings.

The canvas query gives you the mounted component. Click Fit diagram to call fitToContent(40): it centers the content and chooses a zoom that leaves 40 screen pixels of padding. The method returns void. For engine access, this.canvas().activeEngine() returns the bound engine or the canvas-owned engine; make engine-touching setup calls in ngAfterViewInit, not the constructor.

3. Bootstrap and run

Use this browser entry point to mount AppComponent on the application's <app-root> element:

ts
Copy
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app/app.component';

bootstrapApplication(AppComponent).catch((error: Error) => {
  console.error(error);
});

Start your application:

bash
Copy
ng serve

Open the local URL printed by the Angular CLI. Drag Ingest, then click Fit diagram to bring both nodes back into view. The component cleans up its plugins and rendering resources when Angular destroys it; this controlled sample does not require a manual disposal call.

You now have a sized canvas, two connected nodes, application state that receives diagram edits and imperative access through Angular's view query.

Where next

Try the live Angular starter, or open the Angular demo gallery.

• Angular: state and tooling covers signals and component methods beyond this first canvas.
• Angular: templates and handles replaces the built-in node appearance with Angular templates.
• Lay out a diagram arranges nodes automatically.
• How Grafloria works explains specs, live models and the engine.
