Highlight and animate state

Use outlines to show hover, selection and validation, and connected-line highlighting to follow a selected step. Use execution statuses and animated strokes to show progress. The examples draw a completed Fetch node, a pulsing Transform node, a pending Save node, and a moving token on the Fetch–Transform wire.

1. Define the progress display

Keep specs and live state separate: NodeSpec and EdgeSpec seed the diagram; query its live DiagramModel to update progress. The outline settings use HighlighterConfig; connected-line settings use HighlightConnectedOptions.

Create state.ts in your browser application's source directory, then mount it with the entry file in step 2. Run on its own, this module mounts a preview; the framework entry replaces that preview when it initializes. The extra Audit–Log branch makes the dimming visible: Transform starts selected, so its connected wires stand out while the unrelated wire fades.

typescript
Copy
import { render } from '@grafloria/element';
import type { DiagramModel } from '@grafloria/engine';
import type {
  DiagramInstance, NodeSpec, EdgeSpec,
  HighlighterConfig, HighlightConnectedOptions,
} from '@grafloria/renderer';

export const nodes: NodeSpec[] = [
  { id: 'fetch', label: 'Fetch', position: { x: 40, y: 80 },
    size: { width: 120, height: 56 } },
  { id: 'transform', label: 'Transform', selected: true,
    position: { x: 280, y: 80 }, size: { width: 120, height: 56 } },
  { id: 'save', label: 'Save', position: { x: 520, y: 80 },
    size: { width: 120, height: 56 } },
  { id: 'audit', label: 'Audit', position: { x: 40, y: 240 },
    size: { width: 120, height: 56 } },
  { id: 'log', label: 'Log', position: { x: 280, y: 240 },
    size: { width: 120, height: 56 } },
];

export const edges: EdgeSpec[] = [
  { id: 'active', source: 'fetch', target: 'transform',
    style: { animation: { type: 'marching-ants', speed: 'normal' } } },
  { id: 'next', source: 'transform', target: 'save' },
  { id: 'other', source: 'audit', target: 'log' },
];

export const outlines: Partial<HighlighterConfig> = {
  showValidation: false,
};
export const connected: HighlightConnectedOptions = {
  depth: 1, outgoing: 'dashed', dimOpacity: 0.25,
};

let removePreview: (() => void) | undefined;

export function showProgress(model: DiagramModel): void {
  removePreview?.();
  removePreview = undefined;
  model.getNode('fetch')?.setState({ status: 'completed' });
  model.getNode('transform')?.setState({ status: 'running', animateStatus: true });
  model.getNode('save')?.setState({ status: 'pending' });
}

export function attach(
  instance: DiagramInstance,
  reportDragging: (text: string) => void,
): () => void {
  showProgress(instance.getModel());
  instance.fitView(40);
  instance.renderNow();
  const removeRider = mountRider(instance.container);
  const report = () => {
    const ids = instance.getDraggingNodeIds();
    reportDragging(ids.length ? ids.join(', ') : 'none');
  };
  report();
  const timer = window.setInterval(report, 100);
  return () => {
    window.clearInterval(timer);
    removeRider();
  };
}

let riderId = 0;

export function mountRider(host: HTMLElement): () => void {
  const painted = host.querySelector('svg');
  if (!painted) return () => {};
  const ns = 'http://www.w3.org/2000/svg';
  const overlay = document.createElementNS(ns, 'svg');
  overlay.style.cssText =
    'position:absolute;inset:0;width:100%;height:100%;pointer-events:none';
  overlay.setAttribute('aria-hidden', 'true');
  const guide = document.createElementNS(ns, 'path');
  do {
    guide.id = `rider-${++riderId}`;
  } while (document.getElementById(guide.id));
  guide.setAttribute('fill', 'none');
  guide.setAttribute('stroke', 'none');
  const token = document.createElementNS(ns, 'circle');
  token.setAttribute('r', '6');
  token.setAttribute('fill', '#ec4899');
  token.setAttribute('stroke', '#fff');
  token.setAttribute('stroke-width', '1.5');
  const motion = document.createElementNS(ns, 'animateMotion');
  motion.setAttribute('dur', '2.4s');
  motion.setAttribute('begin', '-0.6s');
  motion.setAttribute('repeatCount', 'indefinite');
  const path = document.createElementNS(ns, 'mpath');
  path.setAttribute('href', `#${guide.id}`);
  motion.appendChild(path);
  token.appendChild(motion);
  overlay.append(guide, token);
  host.appendChild(overlay);

  const sync = () => {
    overlay.setAttribute('viewBox', painted.getAttribute('viewBox') ?? '0 0 680 360');
    overlay.setAttribute('preserveAspectRatio',
      painted.getAttribute('preserveAspectRatio') ?? 'xMidYMid meet');
    const wire = painted.querySelector('[data-link-id="active"] path.diagram-link');
    guide.setAttribute('d', wire?.getAttribute('d') ?? '');
  };
  sync();
  const observer = new MutationObserver(sync);
  observer.observe(painted, {
    attributes: true, attributeFilter: ['d', 'viewBox', 'preserveAspectRatio'],
    childList: true, subtree: true,
  });
  const preference = window.matchMedia('(prefers-reduced-motion: reduce)');
  const respectMotion = () => { token.style.display = preference.matches ? 'none' : ''; };
  respectMotion();
  preference.addEventListener('change', respectMotion);
  return () => {
    observer.disconnect();
    preference.removeEventListener('change', respectMotion);
    overlay.remove();
  };
}

if (typeof document !== 'undefined') {
  const preview = document.createElement('div');
  preview.style.cssText = 'position:relative;height:400px';
  document.body.appendChild(preview);
  const instance = render({ nodes, edges }, preview, {
    highlighterConfig: outlines, highlightConnected: connected,
  });
  const detach = attach(instance, () => {});
  removePreview = () => {
    detach();
    instance.dispose();
    preview.remove();
  };
}

The shipped stroke animation comes from style.animation. The token is different: it is application-owned SVG, not an engine particle API. Following the authors' animating-edges example, it rides a copy of the painted path with animateMotion and mpath. A sibling overlay mirrors the renderer's viewBox and path geometry during pan, zoom and rerouting. Do not append tokens inside the renderer-owned SVG subtree.

2. Mount it in your framework

Install the packages for your framework in your own project.

JavaScript:

bash
Copy
npm install @grafloria/element @grafloria/engine @grafloria/renderer

Angular:

bash
Copy
npm install @grafloria/angular @angular/common @angular/core @angular/forms @angular/platform-browser @grafloria/engine @grafloria/renderer rxjs @grafloria/element

Qwik:

bash
Copy
npm install @grafloria/qwik @grafloria/engine @grafloria/renderer @builder.io/qwik @grafloria/element

React:

bash
Copy
npm install @grafloria/react @grafloria/engine @grafloria/renderer react react-dom @grafloria/element

Vue:

bash
Copy
npm install @grafloria/vue @grafloria/engine @grafloria/renderer vue @grafloria/element

For this display, pass highlighterConfig and highlightConnected to render or React's GrafloriaFlow, Vue's GrafloriaFlow or Qwik's GrafloriaFlow, and use rendererConfig.highlightConnected on Angular's DiagramCanvasComponent; see edit nodes for mounting and accessing the DiagramInstance or Angular's activeEngine().

Use the matching file below alongside state.ts. Each mounts the same progress display in a sized container. In the instance-based bindings, the readout shows the ids currently being dragged; it reads none before movement passes the drag threshold and after release. The Angular canvas does not expose getDraggingNodeIds().

ts
Copy
import { render } from '@grafloria/element';
import { nodes, edges, outlines, connected, attach } from './state';

export function mountProgress(parent: HTMLElement): () => void {
  const readout = document.createElement('p');
  const host = document.createElement('div');
  host.style.cssText = 'position:relative;height:400px';
  parent.append(readout, host);
  const instance = render({ nodes, edges }, host, {
    highlighterConfig: outlines, highlightConnected: connected,
  });
  const detach = attach(instance, text => { readout.textContent = `Dragging: ${text}`; });
  return () => {
    detach();
    instance.dispose();
    readout.remove();
    host.remove();
  };
}

const parent = document.getElementById('app')!;
export const unmountProgress = mountProgress(parent);
// Call unmountProgress() when your application removes this view.

ts
Copy
import { AfterViewInit, Component, ElementRef, OnDestroy, viewChild } from '@angular/core';
import { DiagramCanvasComponent } from '@grafloria/angular';
import type { NodeSpec, EdgeSpec } from '@grafloria/renderer';
import { nodes, edges, outlines, connected, showProgress, mountRider } from './state';

@Component({
  selector: 'app-progress',
  standalone: true,
  imports: [DiagramCanvasComponent],
  template: `
    <div #host style="position:relative;height:400px">
      <grafloria-diagram-canvas
        [(nodes)]="nodes" [(edges)]="edges"
        [highlighterConfig]="outlines" [rendererConfig]="rendererConfig"
        style="display:block;height:100%" />
    </div>
  `,
})
export class ProgressComponent implements AfterViewInit, OnDestroy {
  readonly canvas = viewChild.required(DiagramCanvasComponent);
  readonly host = viewChild.required<ElementRef<HTMLElement>>('host');
  nodes: NodeSpec[] = nodes;
  edges: EdgeSpec[] = edges;
  readonly outlines = outlines;
  readonly rendererConfig = { highlightConnected: connected };
  private removeRider: (() => void) | undefined;
  private frame: number | undefined;

  ngAfterViewInit(): void {
    const model = this.canvas().activeEngine()?.getDiagram();
    if (model) showProgress(model);
    this.canvas().fitToContent(40);
    this.canvas().scheduleRender();
    this.frame = requestAnimationFrame(() => {
      this.removeRider = mountRider(this.host().nativeElement);
    });
  }
  ngOnDestroy(): void {
    if (this.frame !== undefined) cancelAnimationFrame(this.frame);
    this.removeRider?.();
  }
}

tsx
Copy
import { component$, noSerialize, useSignal, useVisibleTask$, type NoSerialize } from '@builder.io/qwik';
import { GrafloriaFlow } from '@grafloria/qwik';
import { nodes, edges, outlines, connected, attach } from './state';

export default component$(() => {
  const dragging = useSignal('none');
  const detach = useSignal<NoSerialize<() => void>>();
  useVisibleTask$(({ cleanup }) => {
    cleanup(() => detach.value?.());
  });
  return <>
    <p>Dragging: {dragging.value}</p>
    <div style={{ position: 'relative', height: '400px' }}>
      <GrafloriaFlow defaultNodes={nodes} defaultEdges={edges}
        highlighterConfig={outlines} highlightConnected={connected}
        onInit$={instance => {
          detach.value?.();
          detach.value = noSerialize(attach(instance, text => { dragging.value = text; }));
        }} />
    </div>
  </>;
});

tsx
Copy
import { useEffect, useRef, useState } from 'react';
import { GrafloriaFlow } from '@grafloria/react';
import { nodes, edges, outlines, connected, attach } from './state';

export default function Progress() {
  const [dragging, setDragging] = useState('none');
  const detach = useRef<(() => void) | undefined>(undefined);
  useEffect(() => () => detach.current?.(), []);
  return <>
    <p>Dragging: {dragging}</p>
    <div style={{ position: 'relative', height: 400 }}>
      <GrafloriaFlow defaultNodes={nodes} defaultEdges={edges}
        highlighterConfig={outlines} highlightConnected={connected}
        onInit={instance => {
          detach.current?.();
          detach.current = attach(instance, setDragging);
        }} />
    </div>
  </>;
}

vue
Copy
<script setup lang="ts">
import { onBeforeUnmount, ref } from 'vue';
import { GrafloriaFlow } from '@grafloria/vue';
import type { DiagramInstance } from '@grafloria/renderer';
import { nodes, edges, outlines, connected, attach } from './state';

const dragging = ref('none');
let detach: (() => void) | undefined;
function init(instance: DiagramInstance): void {
  detach?.();
  detach = attach(instance, text => { dragging.value = text; });
}
onBeforeUnmount(() => detach?.());
</script>

<template>
  <p>Dragging: {{ dragging }}</p>
  <div style="position:relative;height:400px">
    <GrafloriaFlow :default-nodes="nodes" :default-edges="edges"
      :highlighter-config="outlines" :highlight-connected="connected" @init="init" />
  </div>
</template>

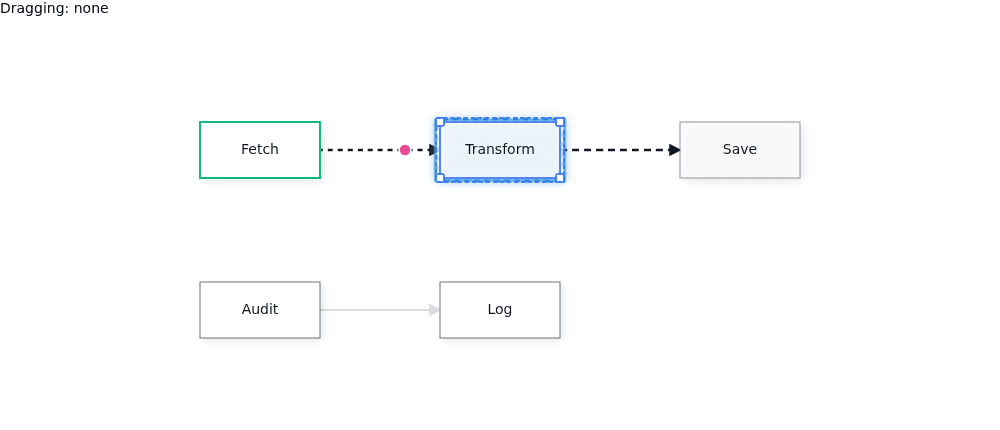

Fetch has a green completed stroke, Transform has a blue running stroke and pulse, and Save appears faded as pending. The pink circle travels along the animated incoming wire. Select another node to move the connected-line emphasis; click the background to remove it. Hover and selection outlines remain enabled, while validation outlines are disabled in this example.

3. Choose the effects you need

highlighterConfig={false} disables only the extra outline layer, not selection itself. true enables all kinds. An object starts from the defaults on each assignment, so { showHover: false } keeps the other kinds enabled rather than retaining a previous configuration.

For a mounted instance, setHighlighterConfig() and setHighlightConnected() change these settings and schedule a repaint. getHighlightConnected() returns the current boolean or options object. To trace the whole path instead of immediate neighbours, pass { depth: Infinity } through the prop or setter.

Execution status belongs to the live NodeModel: call setState({ status }) with idle, pending, running, completed, error or warning. idle adds no status class; the others retain static visual cues even when motion is disabled. Set animateStatus: false to keep the status but suppress its motion. Change a live wire through LinkModel's updateStyle({ animation: { type: 'flow' } }), then request a repaint as the samples do.

The instance's animations property is its shipped AnimationService. setEnabled(false) disables motion globally, and updateConfig({ reducedMotion: true }) requests static rendering. System reduced-motion preferences are detected by default. The custom token is outside that service; this sample separately hides it for the system reduced-motion preference. Wire any application-level motion switch to your own overlay too.

Keep view effects separate from document changes

• Outlines and connected-line highlighting do not mutate the model or add undo steps. Dragging ids are a read-only observation of the active gesture, not a stored node property.
• Execution status and animateStatus are durable node state. style.animation is link style, and updateStyle() records a model change. These are not viewer-only effects; document read-only protection blocks those writes.
• The samples directly set a progress snapshot; they do not execute a workflow or record commands on the history stack. Your application decides when a step runs, completes, warns or fails. Use commands and history for undoable editor actions, and save and restore documents for persistence.
• Keep the rider in its sibling overlay. Its observer copies routed geometry rather than assuming a straight line, and its teardown disconnects the observer when the view unmounts. The framework binding owns disposal of its diagram; the JavaScript host disposes its instance explicitly.

Live demos and related tasks

• Highlight connected lines: immediate neighbours, full-path tracing and lines lifted over crossing cards.
• Animating edges: all four stroke styles plus circles, packages and trains of tokens. View its source.
• Execute flow: application-driven status changes, failures, warnings and stepping.
• Turbo flow: animated borders and glowing gradient edges.
• Theme a canvas for appearance; route and label edges for geometry.
