Documentation

JavaScript quick start

tutorial
2 min readUpdated

Mount a sized, interactive diagram in plain JavaScript with either render or the <grafloria-flow> custom element.

Grafloria has one headless model underneath its framework bindings; the element and render() give you two ways to mount that same diagram in a browser.

Prerequisites

  • A browser project that runs JavaScript modules and can resolve npm packages (the steps below use Vite).
  • @grafloria/element 0.4.83, with peer dependencies @grafloria/engine ^0.3.16 and @grafloria/renderer ^0.4.15.

Install

bash
npm install @grafloria/element @grafloria/engine @grafloria/renderer
npm install --save-dev vite

Add a dev script that runs Vite, or start the local server with npx vite from your project directory.

1. Mount with render()

Use render() when you want the live DiagramInstance returned to your JavaScript code. It takes the diagram data first and then a sized target element.

Create index.html with a real height for the canvas:

html
<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <title>Grafloria flow</title>
    <style>
      html, body { margin: 0; height: 100%; }
      #canvas { width: 100%; height: 80vh; }
    </style>
  </head>
  <body>
    <div id="canvas"></div>
    <script type="module" src="/src/main.js"></script>
  </body>
</html>

In src/main.js, pass a spec containing two nodes and an edge:

js
import { render } from '@grafloria/element';

const canvas = document.getElementById('canvas');
if (!(canvas instanceof HTMLElement)) {
  throw new Error('Canvas element not found');
}
canvas.style.height = '80vh';
const diagram = render({
  nodes: [
    { id: 'ingest', position: { x: 60, y: 80 }, size: { width: 180, height: 80 }, data: { label: 'Ingest' } },
    { id: 'publish', position: { x: 380, y: 80 }, size: { width: 180, height: 80 }, data: { label: 'Publish' } },
  ],
  edges: [{ id: 'ingest-to-publish', source: 'ingest', target: 'publish' }],
}, canvas);

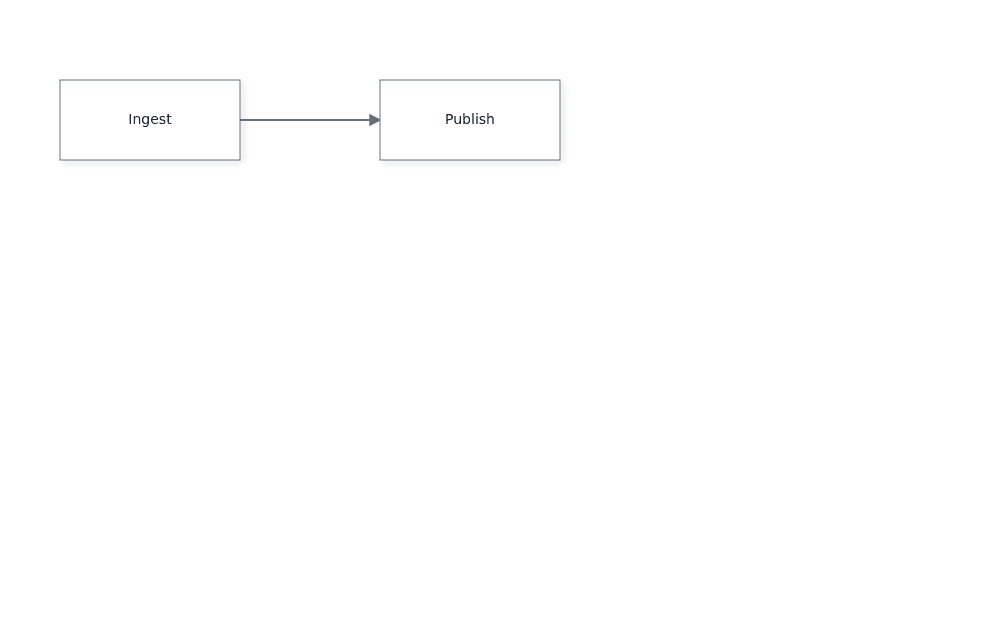

Look at the canvas immediately after render() mounts the diagram.

The canvas shows Ingest connected to Publish. You can drag nodes, connect them, pan, and zoom; diagram is the returned instance for further operations. The spec is diagram data, not Mermaid text.

2. Or mount the custom element

Choose <grafloria-flow> when HTML attributes are the natural place to provide the diagram. Import the package from your JavaScript module to register the element, then put JSON arrays in its nodes and edges attributes.

Use this index.html instead of the render() version above. The element fills its own box, so give the element a resolved height:

html
<!doctype html>
<html lang="en">
  <head>
    <meta charset="utf-8">
    <title>Grafloria flow</title>
    <style>
      html, body { margin: 0; height: 100%; }
      grafloria-flow { display: block; width: 100%; height: 80vh; }
    </style>
  </head>
  <body>
    <grafloria-flow
      nodes='[{"id":"extract","position":{"x":60,"y":80},"label":"Extract"},{"id":"load","position":{"x":300,"y":80},"label":"Load"}]'
      edges='[{"id":"extract-to-load","source":"extract","target":"load"}]'>
    </grafloria-flow>
    <script type="module" src="/src/main.js"></script>
  </body>
</html>

Use the exported GrafloriaFlowElement class to narrow the queried element to the custom-element API. Importing the package registers the default tag.

js
import { GrafloriaFlowElement } from '@grafloria/element';

const element = document.querySelector('grafloria-flow');
const flow = element instanceof GrafloriaFlowElement
  ? element
  : new GrafloriaFlowElement();
if (!(element instanceof GrafloriaFlowElement)) {
  flow.style.width = '100%';
  flow.style.height = '80vh';
  flow.nodes = [
    { id: 'extract', position: { x: 60, y: 80 }, label: 'Extract' },
    { id: 'load', position: { x: 300, y: 80 }, label: 'Load' },
  ];
  flow.edges = [{ id: 'extract-to-load', source: 'extract', target: 'load' }];
  document.body.append(flow);
}
flow.fitView();

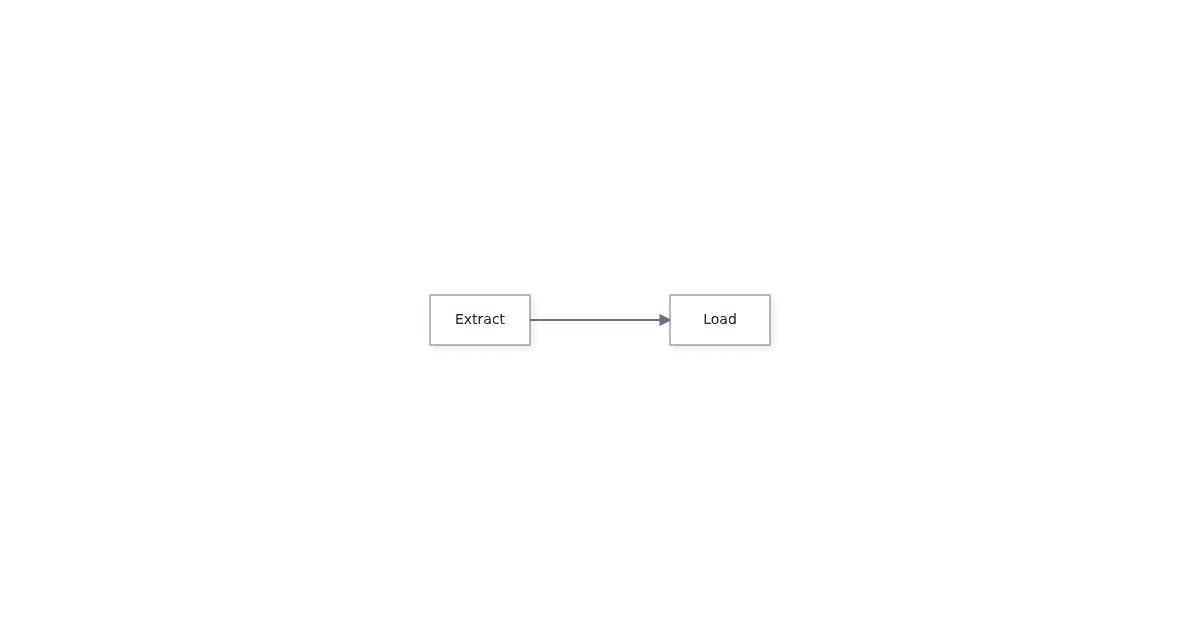

Look at the element's canvas immediately after it mounts the diagram.

The element shows Extract connected to Load, and flow.fitView() frames the diagram in the element. Its nodes and edges values are JSON strings in HTML; for rich JavaScript objects, set the element's nodes and edges properties instead. The element exposes its instance through diagram when you need the instance API.

What you have

Both entry points mount an interactive diagram with a visible edge in a container with a real height. render() returns the instance directly; the custom element gives you HTML attributes and DOM events, and disposes its diagram when disconnected.
